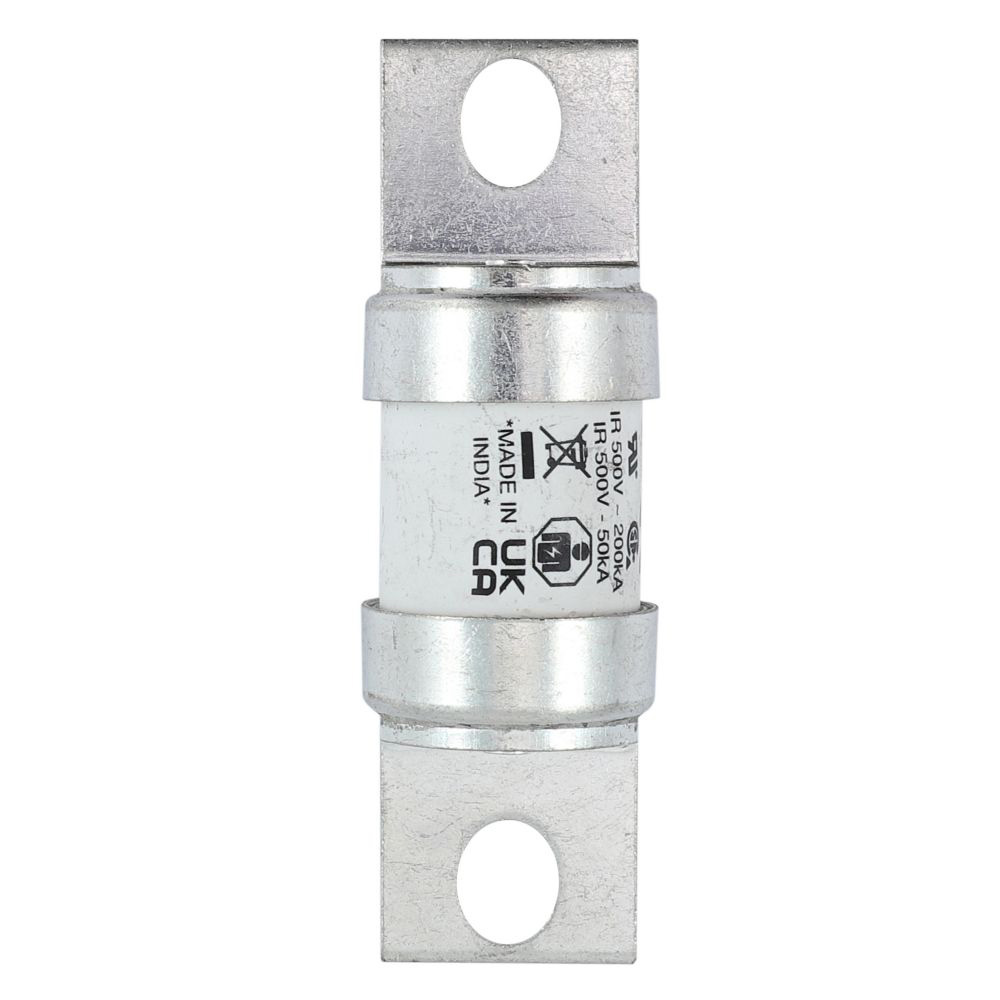

FWH-150B
ActiveEaton - Electronics Division
FUSE, SEMICONDUCTOR, FWH SERIES, 150 A, FAST ACTING, 29.36MM X 46.63MM, 1.156" X 1.836", 500 VDC
FWH-150B
ActiveEaton - Electronics Division
FUSE, SEMICONDUCTOR, FWH SERIES, 150 A, FAST ACTING, 29.36MM X 46.63MM, 1.156" X 1.836", 500 VDC
Description
General part information
FWH-150B
150A 500 VAC 500 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWH-150B |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 150 A |
| Fuse Type | Cartridge |
| Melting I²t | 1100 |
| Mounting Type | Requires Holder |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 1.156 in |
| Size / Dimension Length | 1.836 in |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
