Specification	S29GL01GT11FAIV10

Access Time	110 ns
Memory Depth	128 M
Memory Format	FLASH
Memory Interface (Type)	Parallel
Memory Size	1 Gbit
Memory Type	Non-Volatile
Memory Width	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	64-LBGA
Package Length	13 mm
Package Name	64-FBGA
Package Width	11 mm
Technology	FLASH - NOR
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	1.65 V
Write Cycle Time - Page	60 ns
Write Cycle Time - Word	60 ns

S29GL01 Series

...

Part	Access Time	Memory Interface (Type)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Size	Write Cycle Time - Word	Write Cycle Time - Page	Technology	Package Width	Package Name	Package Length	Mounting Type	Memory Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Memory Depth	Memory Width	Memory Format	Qualification	Grade
INFINEON S29GL01GT10FHI040	100 ns	Parallel	3.6 V	2.7 V	1 Gbit	60 ns	60 ns	FLASH - NOR	11 mm	64-FBGA	13 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	128 M	8 bit	FLASH
INFINEON S29GL01GP11TFIR20D	110 ns	Parallel	3.6 V	3 V	1 Gbit	110 ns	110 ns	FLASH - NOR	18.4 mm	56-TFSOP 56-TSOP	0.724 "	Surface Mount	Non-Volatile		85 °C	-40 °C	128 M	8 bit	FLASH
INFINEON S29GL01GS12DHVV13	120 ns	Parallel	3.6 V	1.65 V	1 Gbit	60 ns	60 ns	FLASH - NOR	9 mm	64-FBGA	9 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	64 M	16 bit	FLASH
INFINEON S29GL01GS10FAI020	100 ns	Parallel	3.6 V	2.7 V	1 Gbit	60 ns	60 ns	FLASH - NOR	11 mm	64-FBGA	13 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	64 M	16 bit	FLASH
INFINEON S29GL01GT10FAI010	100 ns	Parallel	3.6 V	2.7 V	1 Gbit	60 ns	60 ns	FLASH - NOR	11 mm	64-FBGA	13 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	128 M	8 bit	FLASH	AEC-Q100	Automotive
INFINEON S29GL01GP11FFIR23	110 ns	Parallel	3.6 V	3 V	1 Gbit	110 ns	110 ns	FLASH - NOR	13 mm	64-FBGA	11 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	128 M	8 bit	FLASH
INFINEON S29GL01GP13FAIV20	130 ns	Parallel	3.6 V	1.65 V	1 Gbit	130 ns	130 ns	FLASH - NOR	11 mm	64-FBGA	13 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	128 M	8 bit	FLASH
INFINEON S29GL01GP11TFCR10	110 ns	Parallel	3.6 V	3 V	1 Gbit	110 ns	110 ns	FLASH - NOR	18.4 mm	56-TFSOP 56-TSOP	0.724 "	Surface Mount	Non-Volatile		85 °C	0 °C	128 M	8 bit	FLASH
INFINEON S29GL01GP12FAI010	120 ns	Parallel	3.6 V	2.7 V	1 Gbit	120 ns	120 ns	FLASH - NOR	11 mm	64-FBGA	13 mm	Surface Mount	Non-Volatile	64-LBGA	85 °C	-40 °C	128 M	8 bit	FLASH
INFINEON S29GL01GP11TFCR20	110 ns	CFI	3.6 V	3 V	1 Gbit	110 ns	110 ns	FLASH - NOR	18.4 mm	56-TFSOP 56-TSOP	0.724 "	Surface Mount	Non-Volatile		85 °C	0 °C	64 M	16 bit	FLASH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

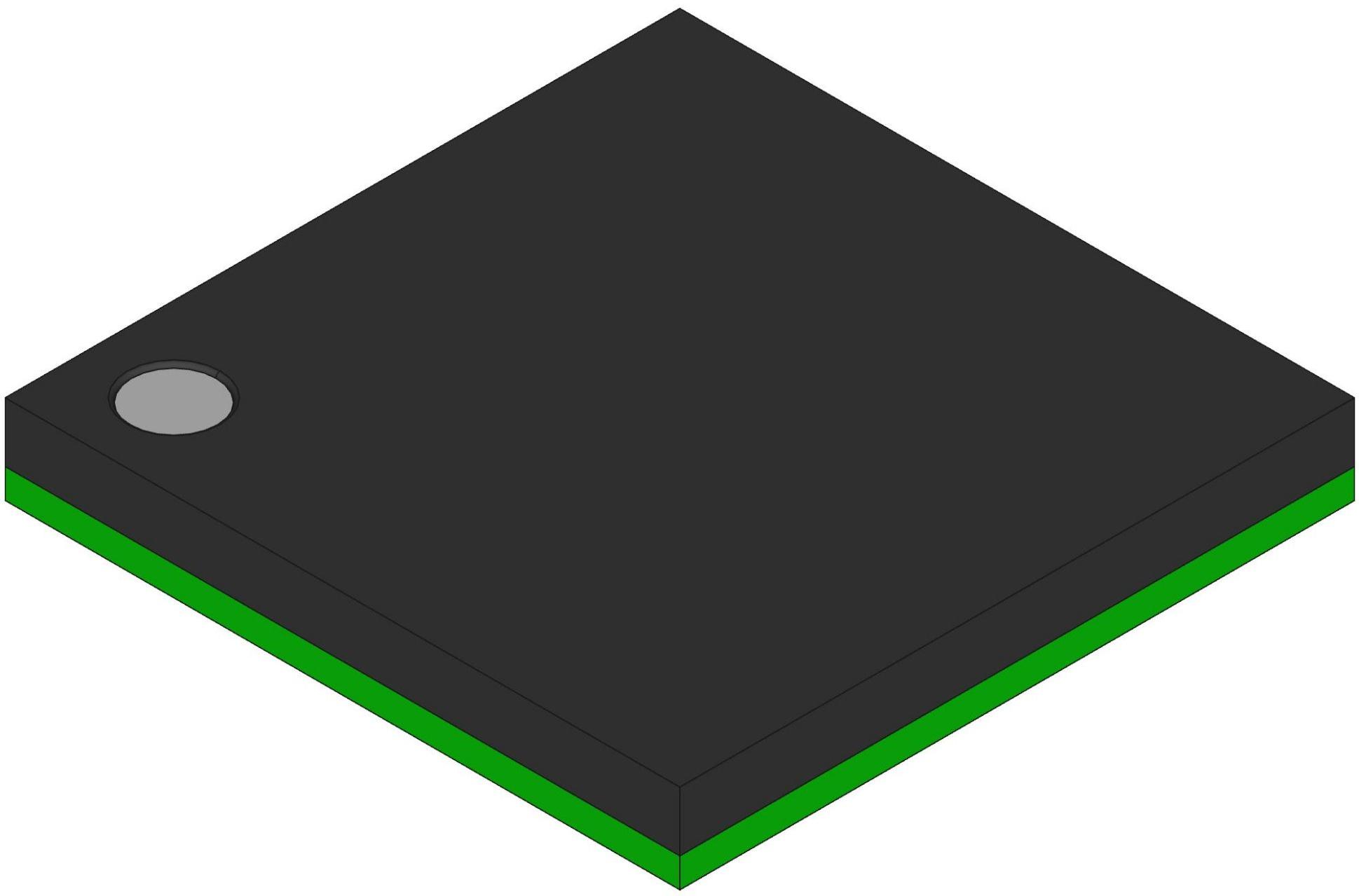

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

S29GL01GT11FAIV10 | Datasheet
