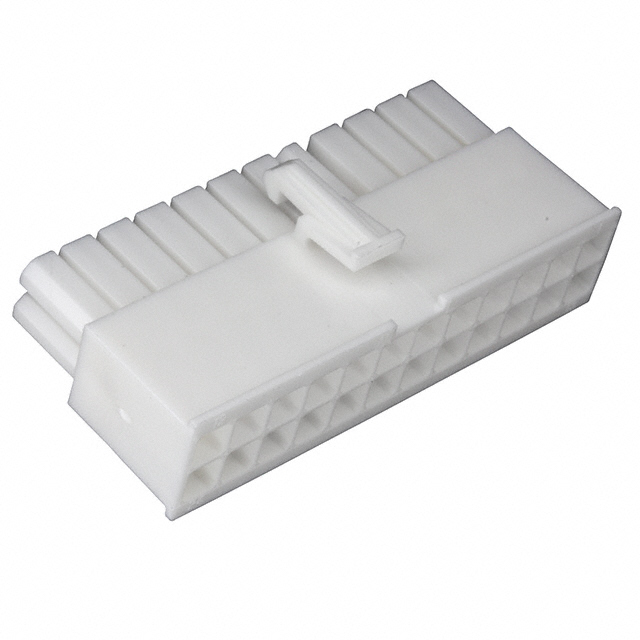

770587-1

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 24POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 24POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

CONN PLUG HSG 24POS 4.14MM

Part	Contact Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Note	Number of Positions	Color	Fastening Type	Row Spacing	Row Spacing	Insulation Material	Number of Rows	Pitch [x]	Pitch [x]	Connector Type
TE Connectivity AMP Connectors 770587-1	Male or Female	Free Hanging (In-Line)	105 ░C	-55 °C	Crimp	Contacts Not Included	24	White	Latch Lock	4.14 mm	0.163 in	Nylon, Polyamide (PA)	2	4.14 mm	0.163 in	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Rectangular Connectors - Housings Plug White 0.163" (4.14mm)

Technical documentation and resources
