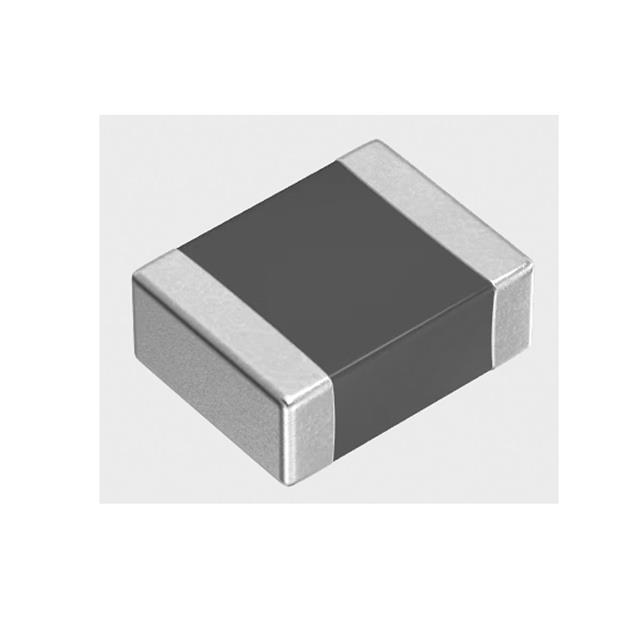

TMS322512ALM-R10MTAA
ActiveEPCOS - TDK Electronics
FIXED IND 100NH 8A 0.008OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS322512ALM-R10MTAA |
|---|---|
| Current - Saturation (Isat) | 14 A |
| Current Rating (Amps) | 8 A |
| DC Resistance (DCR) [Max] | 8 mOhm |
| Features | Soft Termination |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 100 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Tolerance | 20 % |
| Type | Thin Film |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.63 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2000 | $ 0.35 | ||
| 4000 | $ 0.32 | |||
| 6000 | $ 0.31 | |||
| 10000 | $ 0.29 | |||
| 14000 | $ 0.29 | |||
Description
General part information
TMS322512ALM-R10MTAA
100 nH Shielded Thin Film Inductor 8 A 8mOhm Max 1210 (3225 Metric) Soft Termination
