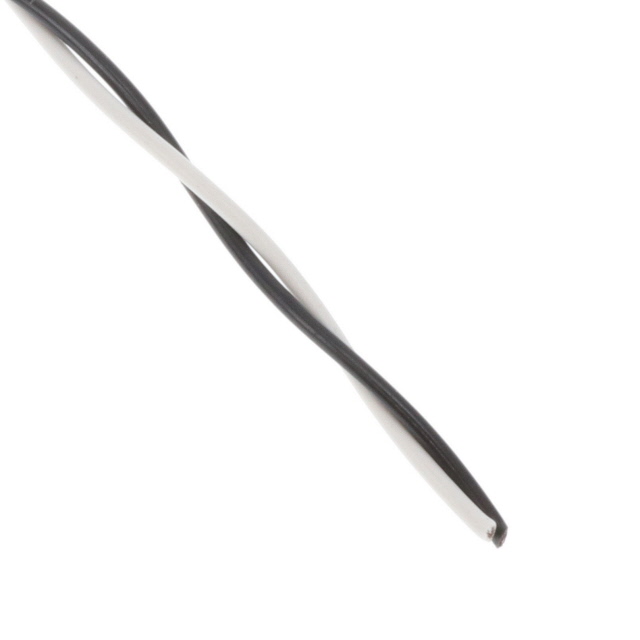

Specification	55A0121-24-0/9

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Material	Tinned, Copper
Jacket (Insulation) Diameter	0.074 in
Length	5 ft, 50 ft, 25 ft, 500 ft, 12 in, 100 ft
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Voltage	600 V
Wire Gauge	24 AWG

55A0121 Series

Part	Spool Size	Voltage	Cable Type	Conductor Material	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Length	Operating Temperature (Min)	Operating Temperature (Max)	Jacket (Insulation) Diameter	Wire Gauge	Conductor Strand Count	Conductor Strand Gauge	Operating Temperature	Conductor Insulation	Length	Conductor Strand Diameter
TE Connectivity AMP Connectors 55A0121-22-0/9	2000 ft	600 V	Conductor Multi	Copper Tinned	2	Twisted	1	Enter Number of Feet in Order Quantity	-65 °C	150 °C	0.086 in	22 AWG
TE Connectivity AMP Connectors 55A0121-22-9/96		600 V	Conductor Multi	Copper Tinned	2	Twisted	1		-65 °C	150 °C	0.086 in	22 AWG
TE Connectivity AMP Connectors 55A0121-18-9/96CS2275		600 V	Conductor Multi	Copper Tinned	2	Twisted	1		-65 °C	150 °C	0.12 in	18 AWG
TE Connectivity AMP Connectors 55A0121-20-9/90		600 V	Conductor Multi	Copper Tinned	2	Twisted	1				0.1 in	20 AWG	19	32 AWG	150 °C	Ethylene Tetrafluoroethylene (ETFE)
TE Connectivity AMP Connectors 55A0121-16-9/96CS2275-5CF		600 V	Conductor Multi	Copper Tinned	2	Twisted	1				0.136 in	16 AWG	19	29 AWG	150 °C	Ethylene Tetrafluoroethylene (ETFE)
TE Connectivity AMP Connectors 55A0121-12-9/96CS2275		600 V	Conductor Multi	Copper Tinned	2	Twisted	1				0.206 in	12 AWG	37	28 AWG	150 °C	Ethylene Tetrafluoroethylene (ETFE)	5 ft 12 in 25 ft 50 ft 100 ft 500 ft 1000 ft
TE Connectivity AMP Connectors 55A0121-20-0/2		600 V	Conductor Multi	Copper Tinned	2	Twisted	1		-65 °C	150 °C	0.1 in	20 AWG
TE Connectivity AMP Connectors 55A0121-28-9/96		600 V	Conductor Multi	Copper Tinned	2	Twisted	1		-65 °C	150 °C	0.054 in	28 AWG
TE Connectivity AMP Connectors 55A0121-22-9/96CS2275		600 V	Conductor Multi	Copper Tinned	2	Twisted	1	Enter Number of Feet in Order Quantity	-65 °C	150 °C	0.086 in	22 AWG	19					0.0063 in
TE Connectivity AMP Connectors 55A0121-18-0/2		600 V	Conductor Multi	Copper Tinned	2	Twisted	1				0.12 in	18 AWG	19	30 AWG	150 °C	Ethylene Tetrafluoroethylene (ETFE)
