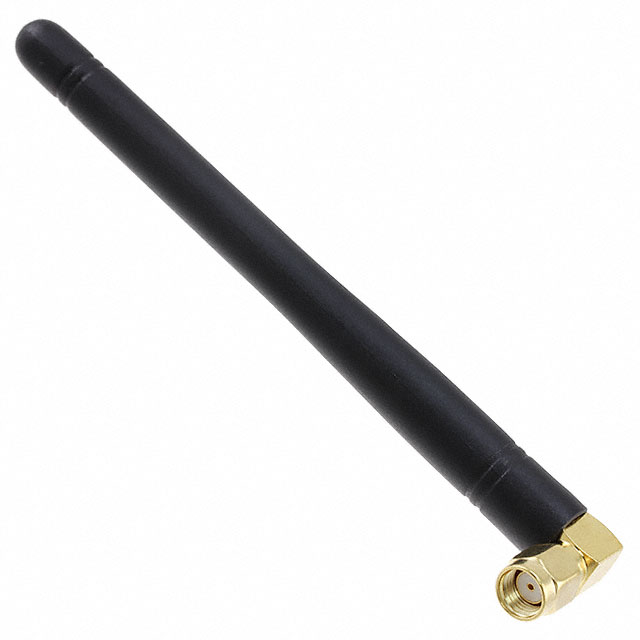

TQX-900B

Active

Digital Six Labs

RIGHT ANGLE 1/4 WAVE MONOPOLE

Search across all available documentation for this part.

Active

Digital Six Labs

RIGHT ANGLE 1/4 WAVE MONOPOLE

Technical Specifications

Parameters and characteristics commom to parts in this series

ARTICULATED 1/2 WAVE HIGH GAIN M

Part	Frequency Group [Max]	Frequency Group [Min]	Frequency (Center/Band)	Applications	Mounting Type	Termination	Antenna Type	Number of Bands	Frequency Range [Max]	Frequency Range [Min]
Digital Six Labs TQX-900E	1 GHz	300 MHz	915 MHz	General Purpose	Connector Mount	RP-SMA	Tilt, Whip	1	928 MHz	902 MHz
Digital Six Labs TQX-900A	1 GHz	300 MHz	915 MHz	General Purpose	Connector Mount	RP-SMA		1	928 MHz	902 MHz
Digital Six Labs TQX-900B	1 GHz	300 MHz	915 MHz	General Purpose	Connector Mount	RP-SMA		1	928 MHz	902 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

915MHz General Purpose Whip, Right Angle RF Antenna 902MHz ~ 928MHz RP-SMA Connector Mount

Technical documentation and resources

No documents available
