1-2204910-0

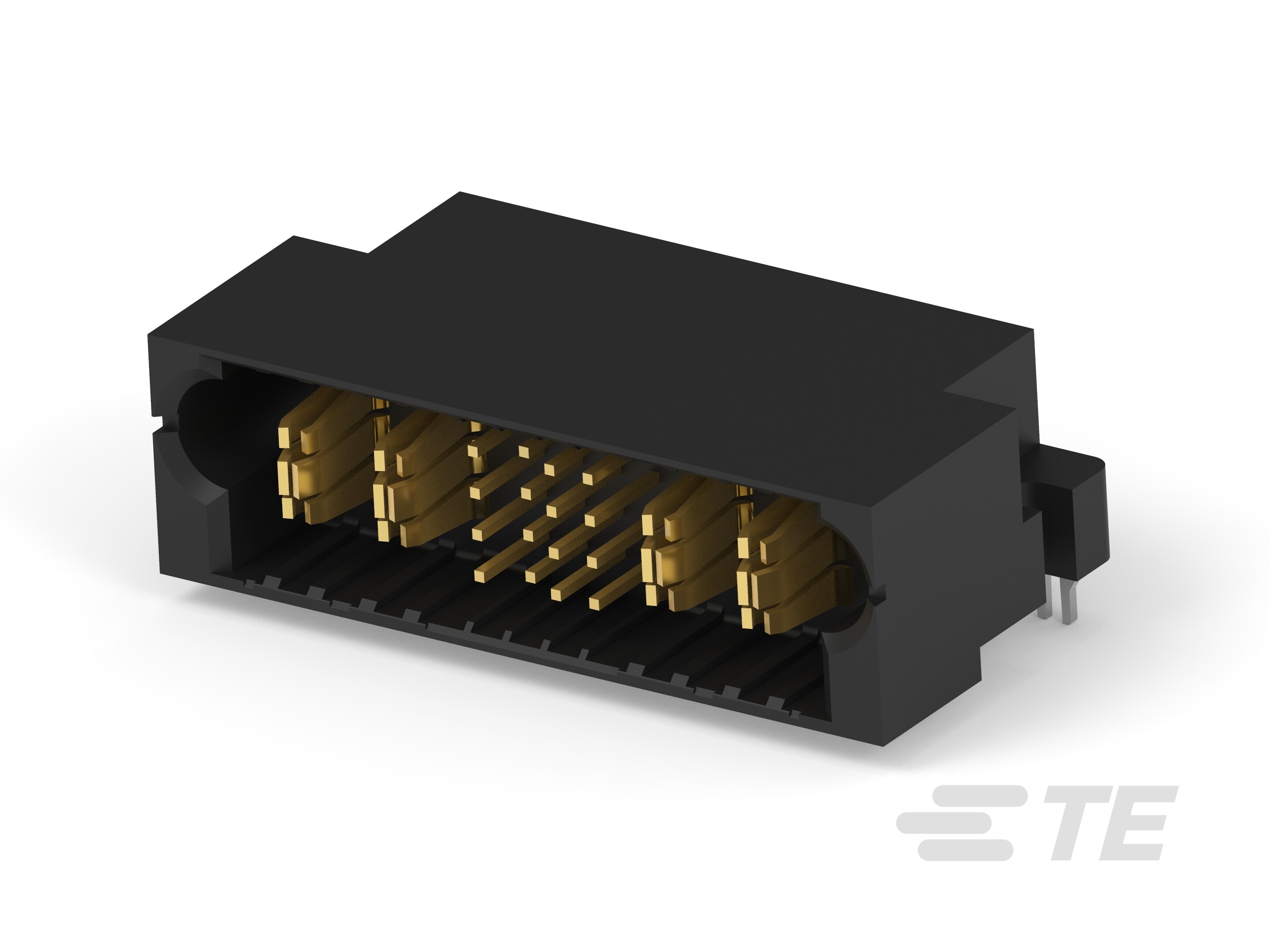

PCB Mount Header, Right Angle, Board-to-Board, 20 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au)

Technical Specifications

Parameters and characteristics for this part

Specification1-2204910-0
ColorBlack
Connector StyleMulti-Beam
Connector TypeReceptacle, Blade Sockets, Female Sockets
Contact FinishGold
FeaturesGuide Pin, Board Lock
Mounting TypeThrough Hole, Right Angle
Number of Columns8
Number of Positions20
Number of Positions LoadedAll
Number of Rows4
Power Contacts (Typical)4
Signal Contacts (Typical)16
TerminationSolder
