FMC00284-100CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-7/16 DINPLUG
FMC00284-100CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-7/16 DINPLUG
Description
General part information
FMC00284-100CM

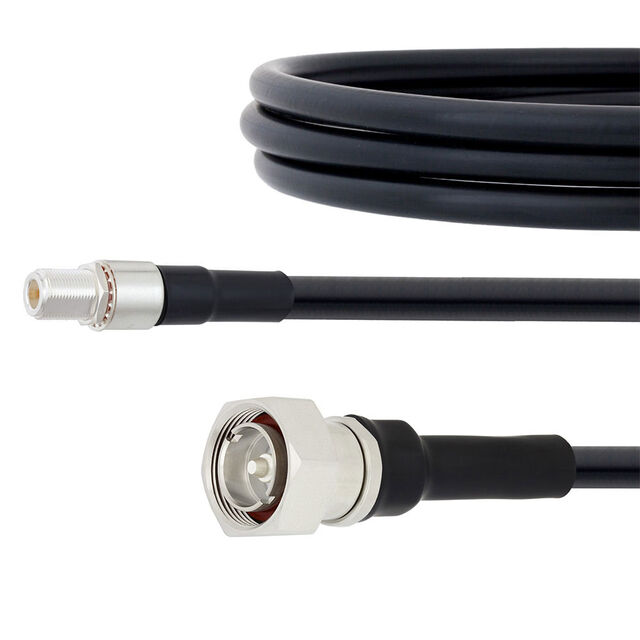

Cable Assembly Coaxial 7/16 DIN to N-Type LMR 600 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00284-100CM |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 600 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to N-Type |
