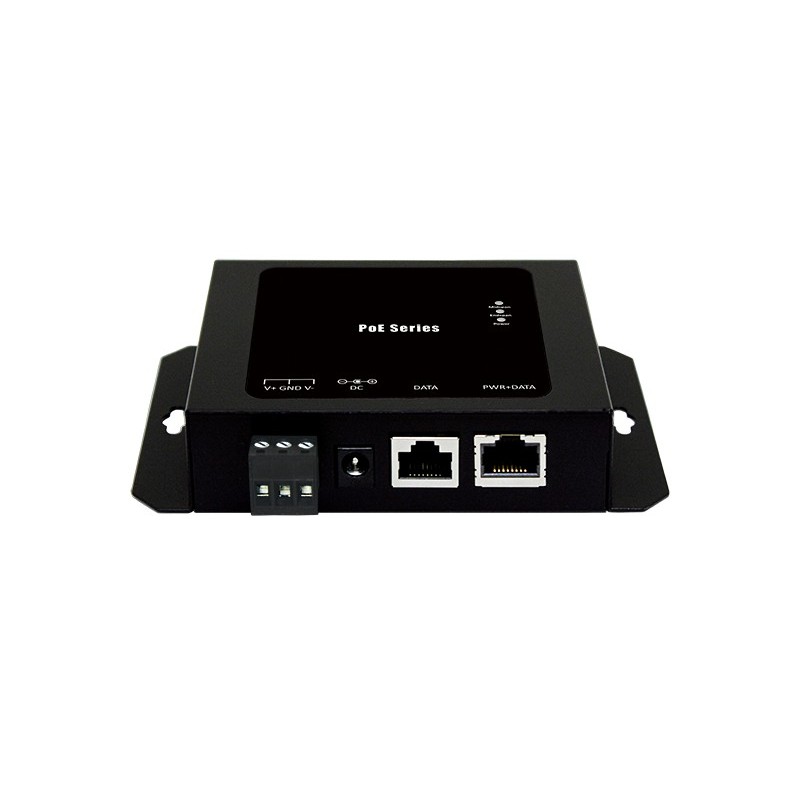

POE-DMG-ZW
ActiveCERiO Corporation
DC12-56V 10G 90WATT POE+ ADAPTER
POE-DMG-ZW
ActiveCERiO Corporation
DC12-56V 10G 90WATT POE+ ADAPTER
Description
General part information
POE-DMG-ZW
DC12-56V 10G 90WATT POE+ ADAPTER
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-DMG-ZW |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3at, IEEE802.3bz, IEEE802.3ab, IEEE802.3bt, IEEE802.3af, IEEE802.3, IEEE802.3u |
| Current - Output | 1.61 A |
| Data Rate | 10 Gbps, 1 Gbps, 5 Gbps, 10 Mbps, 2.5 Gbps, 100 Mbps, 2.5Gbps, 10/100 Mbps, 1Gbps, 10Gbps, 5Gbps |
| Data Rate | 10 Gbps, 5 Gbps, 1000 Mbps, 2.5 Gbps |
| Data Rate (Option 1) | 10 Mbps |
| Data Rate (Option 2) | 100 Mbps |
| Features | SCP, OVP |
| Mounting Type | Desktop, Wall Mount |
| Number of Ports | 2 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) - Per Port | 90 W |
| Size / Dimension Height | 1.06 in |
| Size / Dimension Length | 5.12 in |
| Size / Dimension Width | 3.23 in |
| Type | PoE Injector/Splitter |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 12 V |
| Voltage - Output | 56 V |
