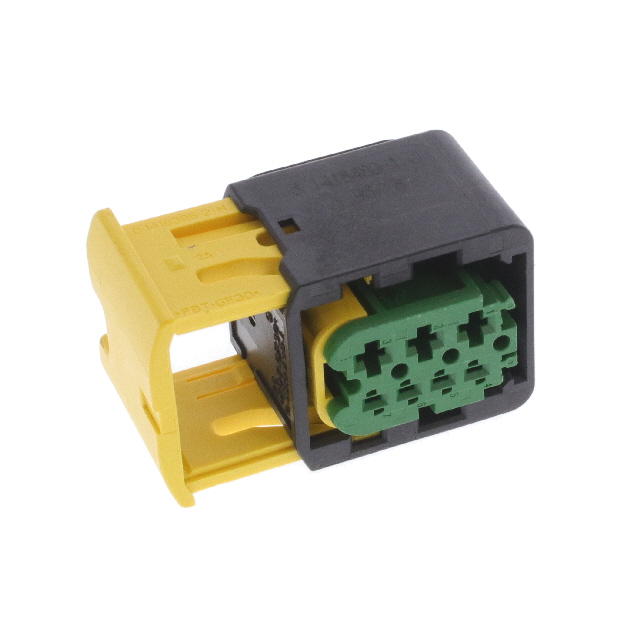

3-1418480-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 7POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 7POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1418480-1	1418480 Series

Color	Green	Blue, Green
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Slide-On	Slide-On
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	7	7
Number of Rows	2	2
Operating Temperature [Max]	140 °C	140 °C
Operating Temperature [Min]	-40 °C	-40 °C
Row Spacing [Max]	0.236 in	0.236 in
Row Spacing [Max]	6 mm	6 mm

CONN RCPT HSG 7POS

Part	Contact Termination	Row Spacing [Max]	Row Spacing [Max]	Fastening Type	Contact Type	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Note	Number of Positions	Insulation Material	Connector Type
TE Connectivity AMP Connectors 4-1418480-1	Crimp	0.236 in	6 mm	Slide-On	Female Socket	Free Hanging (In-Line)	Sealed	140 °C	-40 °C	2	Blue	Contacts Not Included	7	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle
TE Connectivity AMP Connectors 3-1418480-1	Crimp	0.236 in	6 mm	Slide-On	Female Socket	Free Hanging (In-Line)	Sealed	140 °C	-40 °C	2	Green	Contacts Not Included	7	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Rectangular Connectors - Housings Receptacle Green
