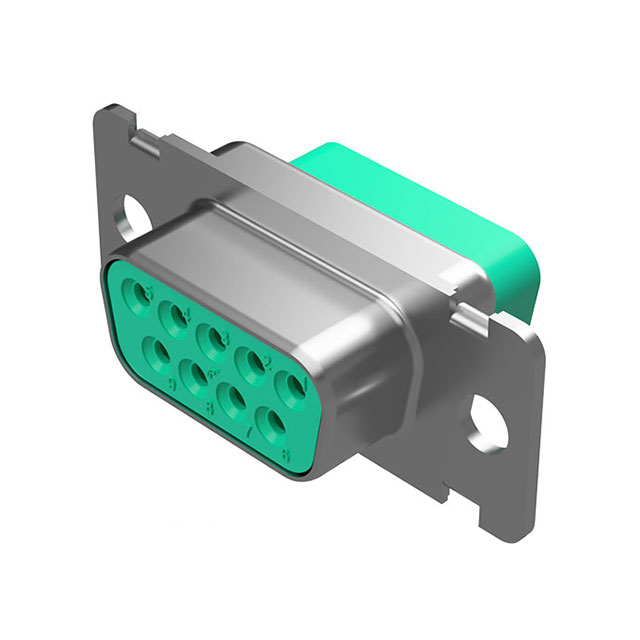

M24308/4-259Z

Active

POSITRONIC

CONN D-SUB PLUG 9POS CRIMP

Search across all available documentation for this part.

Active

POSITRONIC

CONN D-SUB PLUG 9POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/4-259Z

Color	Black
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Diallyl Phthalate (DAP)
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

CONN D-SUB PLUG 9POS CRIMP

Part	Number of Positions	Note	Connector Type	Connector Style	Mating Cycles	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Color	Shell Material, Finish
POSITRONIC M24308/4-259Z	9	Contacts Not Included	Plug for Male Contacts	D-Sub	500	Diallyl Phthalate (DAP)	-55 °C	125 °C	2	Free Hanging (In-Line)	Signal	DE, E	1	Housing/Shell (Unthreaded)	Black	Steel, Yellow Chromate Plated Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	75	$ 5.51

General part information

Plug for Male Contacts Housing D-Sub Connector 9 Position

Technical documentation and resources

No documents available
