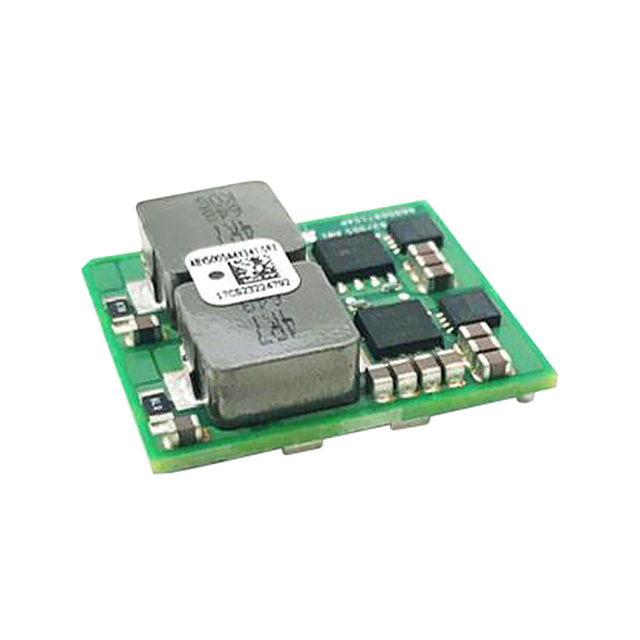

ABXS005A4X341-SRZ

Active

OmniOn Power™

DC DC CONVERTER 16-34V 130W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 16-34V 130W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 16-34V 130W

Part	Mounting Type	Voltage - Input (Min) [Min]	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Type	Power (Watts)	Applications	Current - Output (Max) [Max]
OmniOn Power™ ABXS005A4X341-SRZ	Surface Mount	8 V	95 %	16 V	85 °C	-40 °C	1	OCP, OTP, Remote On/Off, UVLO	27.9 mm	1.1 "	0.33 in	11.4 mm	8.5 mm	0.45 in	8-SMD Module	34 V	16 V	Non-Isolated PoL Module	130 W	ITE (Commercial)	5.4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 16 ~ 34V 5.4A 8V - 16V Input
