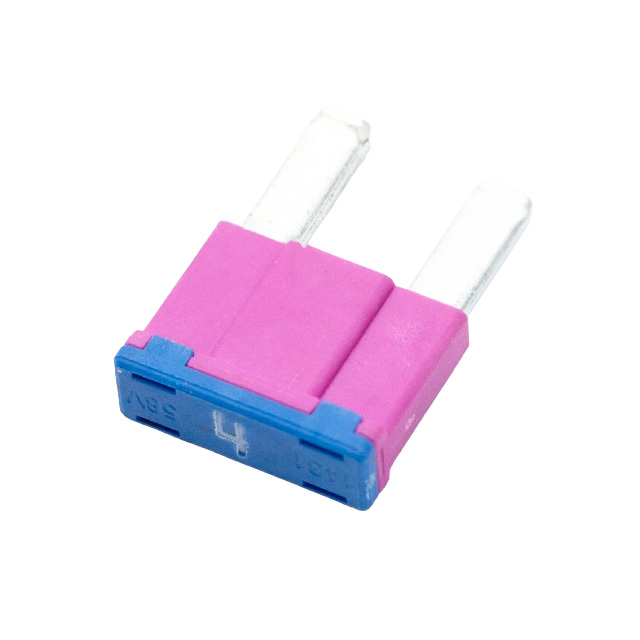

ANM58-4A
ActiveOptiFuse
FUSE AUTOMOTIVE 4A 58VDC BLADE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM58-4A
ActiveOptiFuse
FUSE AUTOMOTIVE 4A 58VDC BLADE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANM58-4A | ANM58 Series |
|---|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Pink | Tan, Clear, Pink, Gray, Black |
| Current Rating (Amps) | 4 A | 1 - 25 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | Blade, Miniature | Blade, Miniature |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 11.8 mm | 11.8 mm |
| Size / Dimension [x] | 0.465 in | 0.465 in |
| Size / Dimension [y] | 4 mm | 4 mm |
| Size / Dimension [y] | 0.157 in | 0.157 in |
| Size / Dimension [z] | 0.354 in | 0.354 in |
| Size / Dimension [z] | 9 mm | 9 mm |
| Voltage Rating - DC | 58 VDC | 58 VDC |
ANM58 Series
FUSE AUTOMOTIVE 5A 58VDC BLADE
| Part | Color | Fuse Type | Breaking Capacity @ Rated Voltage | Response Time | Current Rating (Amps) | Package / Case | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANM58-5A | Tan | Automotive | 1 kA | Fast Blow | 5 A | Blade, Miniature | Requires Holder | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | 58 VDC |
OptiFuse ANM58-25A | Clear | Automotive | 1 kA | Fast Blow | 25 A | Blade, Miniature | Requires Holder | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | 58 VDC |
OptiFuse ANM58-4A | Pink | Automotive | 1 kA | Fast Blow | 4 A | Blade, Miniature | Requires Holder | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | 58 VDC |
OptiFuse ANM58-2A | Gray | Automotive | 1 kA | Fast Blow | 2 A | Blade, Miniature | Requires Holder | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | 58 VDC |
OptiFuse ANM58-1A | Black | Automotive | 1 kA | Fast Blow | 1 A | Blade, Miniature | Requires Holder | 0.354 in | 11.8 mm | 4 mm | 0.157 in | 9 mm | 0.465 in | 58 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.07 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.49 | |||
Description
General part information
ANM58 Series
4 A AC 58 V DC Fuse Automotive Requires Holder Blade, Miniature
