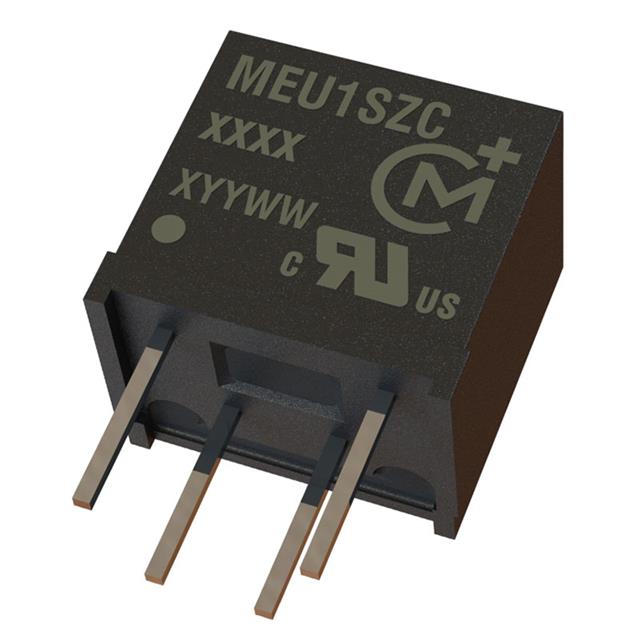

MEU1S0505ZC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
MEU1S0505ZC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MEU1S0505ZC | MEU1S05 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA | 83 - 303 mA |
| Efficiency | 81 % | 77 - 83 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 4-DIP Module | 4-DIP Module |
| Size / Dimension [x] | 0.33 in | 0.33 in |
| Size / Dimension [x] | 8.3 mm | 8.3 mm |
| Size / Dimension [y] | 0.24 " | 0.24 " |
| Size / Dimension [y] | 6.1 mm | 6.1 mm |
| Size / Dimension [z] | 0.31 in | 0.31 in |
| Size / Dimension [z] | 8 mm | 8 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 5 V | 3.3 - 12 V |
MEU1S05 Series
DC DC CONVERTER 3.3V 1W
| Part | Mounting Type | Number of Outputs | Voltage - Output 1 | Applications | Voltage - Isolation | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Current - Output (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MEU1S0503ZC | Through Hole | 1 | 3.3 V | ITE (Commercial) | 1000 V | 5.5 V | 4.5 V | 85 °C | -40 °C | Isolated Module | 77 % | 0.31 in | 0.24 " | 6.1 mm | 0.33 in | 8 mm | 8.3 mm | 303 mA | 4-DIP Module |
Murata Power Solutions Inc. MEU1S0505ZC | Through Hole | 1 | 5 V | ITE (Commercial) | 1000 V | 5.5 V | 4.5 V | 85 °C | -40 °C | Isolated Module | 81 % | 0.31 in | 0.24 " | 6.1 mm | 0.33 in | 8 mm | 8.3 mm | 200 mA | 4-DIP Module |
Murata Power Solutions Inc. MEU1S0512ZC | Through Hole | 1 | 12 V | ITE (Commercial) | 1000 V | 5.5 V | 4.5 V | 85 °C | -40 °C | Isolated Module | 83 % | 0.31 in | 0.24 " | 6.1 mm | 0.33 in | 8 mm | 8.3 mm | 83 mA | 4-DIP Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MEU1S05 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
