Description
General part information

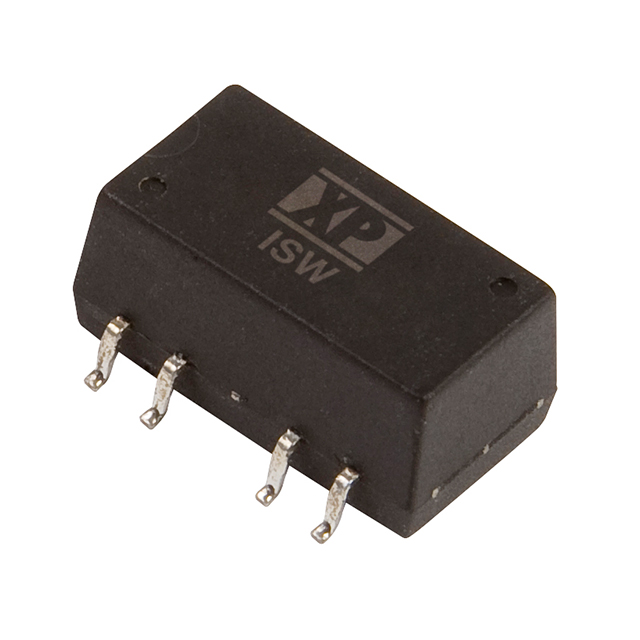

ISW1205A-H
Isolated Module DC DC Converter 1 Output 5V 200mA 11.4V - 12.6V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ISW1205A-H |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 200 mA |
| Efficiency | 73 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 10-SMD Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.28 in |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 12.6 V |
| Voltage - Input (Min) | 11.4 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
