VLF252015MT-R68N-CA
ObsoleteTDK Corporation
FIXED IND 680NH 3.38A 23MOHM SMD
VLF252015MT-R68N-CA
ObsoleteTDK Corporation
FIXED IND 680NH 3.38A 23MOHM SMD
Description
General part information
VLF252015MT-R68N-CA

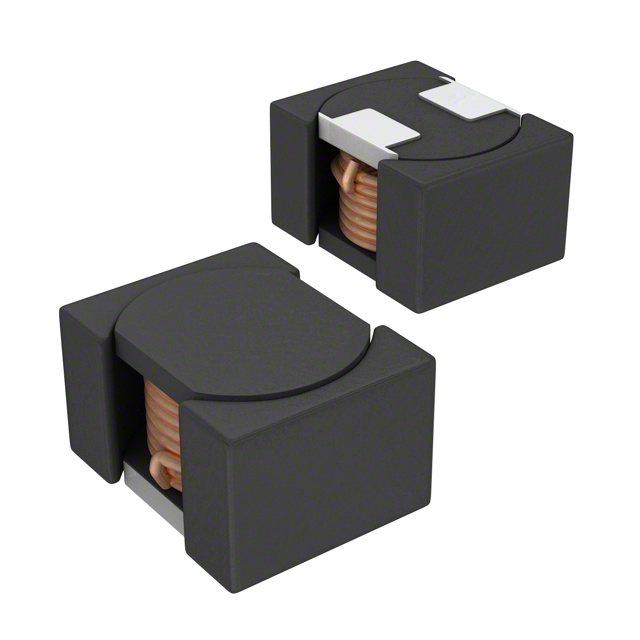

680 nH Shielded Drum Core, Wirewound Inductor 3.38 A 23mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF252015MT-R68N-CA |
|---|---|
| Current - Saturation (Isat) | 1.71 A |
| Current Rating | 3.38 A |
| DC Resistance (DCR) (Max) | 23 mOhm |
| Height - Seated (Max) | 0.059 in |
| Inductance | 680 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Shielding | Shielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
