Description
General part information

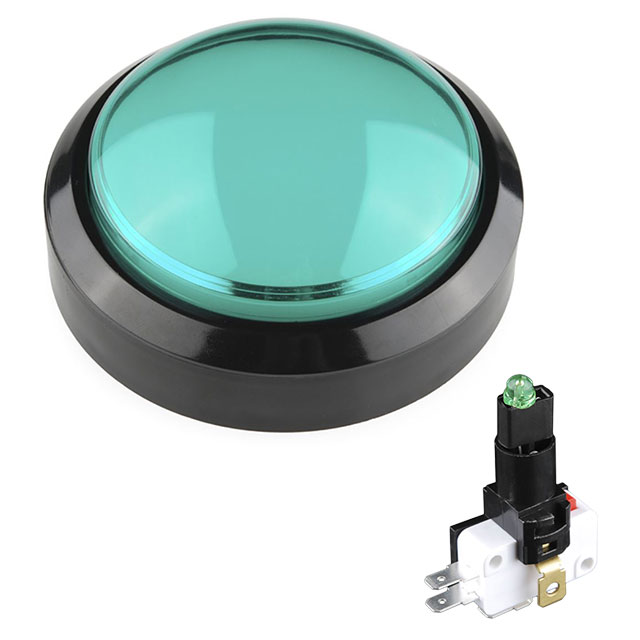

COM-11275
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-11275 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round, Domed |
| Circuit | SPDT |
| Color | Green |
| Color - Actuator/Cap | Clear (Green Filter/Diffuser) |
| Features | Arcade Style |
| Illumination Type | LED |
| Illumination Voltage (Nominal) (Maximum) | 12 VDC |
| Illumination Voltage (Nominal) (Minimum) | 5 VDC |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 24 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Type | Standard, Illuminated |
