M3UMK-6036R
Unknown3M Electronic Specialty
IDC CABLE - MKS60K/MC60M/MCG60K
M3UMK-6036R
Unknown3M Electronic Specialty
IDC CABLE - MKS60K/MC60M/MCG60K
Description
General part information
M3UMK-6036R

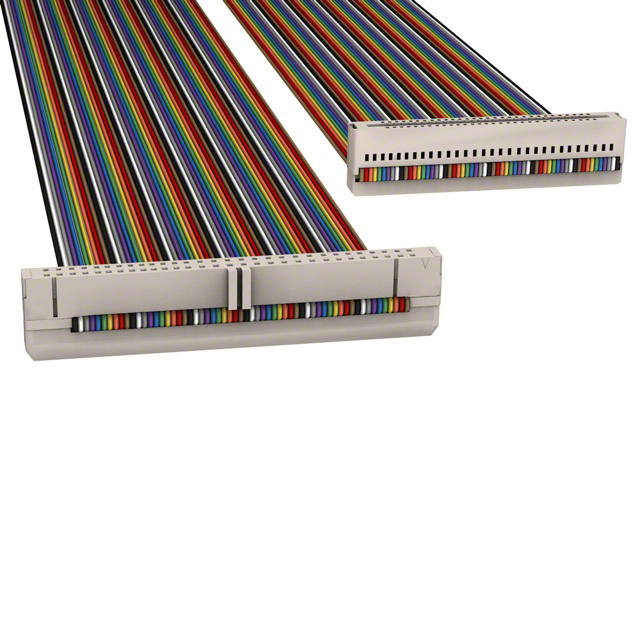

60 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M3UMK-6036R |
|---|---|
| Cable Termination | IDC |
| Color | Multiple, Ribbon |
| Connector Type | Socket to Card Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Strain Relief (Socket); Strain Relief (Card Edge), Polarizing Key |
| Length | 3 ft |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 in |
| Pitch - Connector | 0.1 in |
| Shielding | Unshielded |
