PBC08DAFN

Active

Sullins Connector Solutions

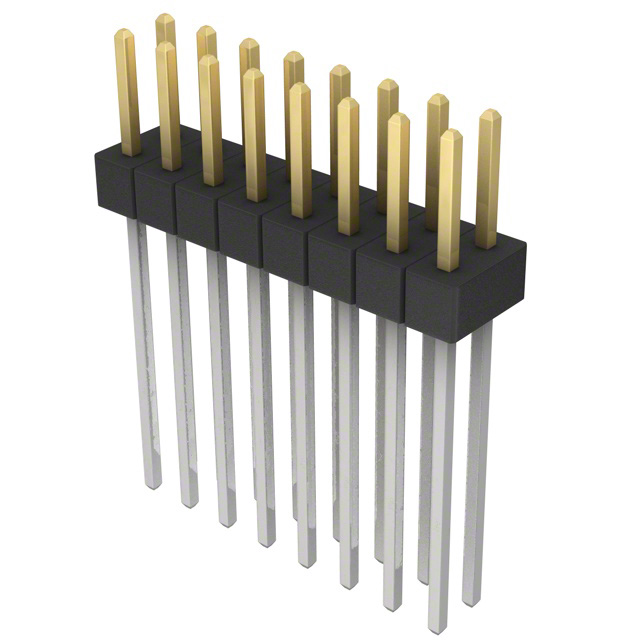

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC08DAFN

Active

Sullins Connector Solutions

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC08DAFN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.62 in
Contact Length - Post	15.75 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	24.13 mm
Overall Contact Length	0.95 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC08 Series

Part	Shrouding	Number of Rows	Fastening Type	Mounting Type	Contact Material	Material Flammability Rating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Termination	Insulation Material	Contact Finish - Post	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Style	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Connector Type	Contact Length - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PBC08DAGN	Unshrouded	2	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C	18.29 mm	0.72 "	Gold	2.54 µm	100 µin	1.05 in	26.67 mm	10 çin	0.25 çm	16	Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	Board to Board Cable	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Breakaway Header
Sullins Connector Solutions PBC08DFCN	Unshrouded	2	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C	8.13 mm	0.32 in	Gold	2.54 µm	100 µin	0.738 "	18.75 mm	10 çin	0.25 çm	16	Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.318 "		Board to Board Cable	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Breakaway Header	8.08 mm
Sullins Connector Solutions PBC08SFAN	Unshrouded	1	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C	3.05 mm	0.12 in	Gold	2.54 µm	100 µin	0.538 "	13.67 mm	10 çin	0.25 çm		Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.318 "		Board to Board Cable	0.1 in	2.54 mm			Black	Breakaway Header	8.08 mm	8
Sullins Connector Solutions PBC08DAHN	Unshrouded	2	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C	20.83 mm	0.82 in	Gold	2.54 µm	100 µin	1.15 in	29.21 mm	10 çin	0.25 çm	16	Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	Board to Board Cable	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Breakaway Header
Sullins Connector Solutions PBC08DAFN	Unshrouded	2	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C			Gold	2.54 µm	100 µin	0.95 in	24.13 mm	10 çin	0.25 çm	16	Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	Board to Board Cable	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Breakaway Header			0.62 in	15.75 mm
Sullins Connector Solutions PBC08DBAN	Unshrouded	2	Push-Pull	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C			Gold	2.54 µm	100 µin			10 çin	0.25 çm	16	Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	Board to Board Cable	0.24 in	6.1 mm	2.54 mm	0.1 in	Black	Breakaway Header			0.1 in	2.54 mm
Sullins Connector Solutions PBC08SGAN	Unshrouded	1	Push-Pull	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C			Gold	2.54 µm	100 µin			10 çin	0.25 çm		Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.318 "		Board to Board Cable	0.14 in	3.56 mm			Black	Breakaway Header	8.08 mm	8	0.1 in	2.54 mm
Sullins Connector Solutions PBC08SFEN	Unshrouded	1	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C			Gold	2.54 µm	100 µin	0.938 in	23.83 mm	10 çin	0.25 çm		Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.318 "		Board to Board Cable	0.1 in	2.54 mm			Black	Breakaway Header	8.08 mm	8	0.52 "	13.21 mm
Sullins Connector Solutions PBC08DACN	Unshrouded	2	Push-Pull	Through Hole	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C	8.13 mm	0.32 in	Gold	2.54 µm	100 µin		0.65 in	10 çin	0.25 çm	16	Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	Board to Board Cable	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Breakaway Header					16.51 mm
Sullins Connector Solutions PBC08SBDN	Unshrouded	1	Push-Pull	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	Male Pin	125 °C	-65 ░C	10.16 mm	0.4 in	Gold	2.54 µm	100 µin			10 çin	0.25 çm		Solder	Polybutylene Terephthalate (PBT)	Tin	All	3 A	0.1 in	2.54 mm	Square	0.23 in	5.84 mm	Board to Board Cable	0.14 in	3.56 mm			Black	Breakaway Header		8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.98
		10	$ 1.72
		100	$ 1.54
		500	$ 1.28
		1000	$ 1.10
		5000	$ 1.05

Description

General part information

PBC08 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
