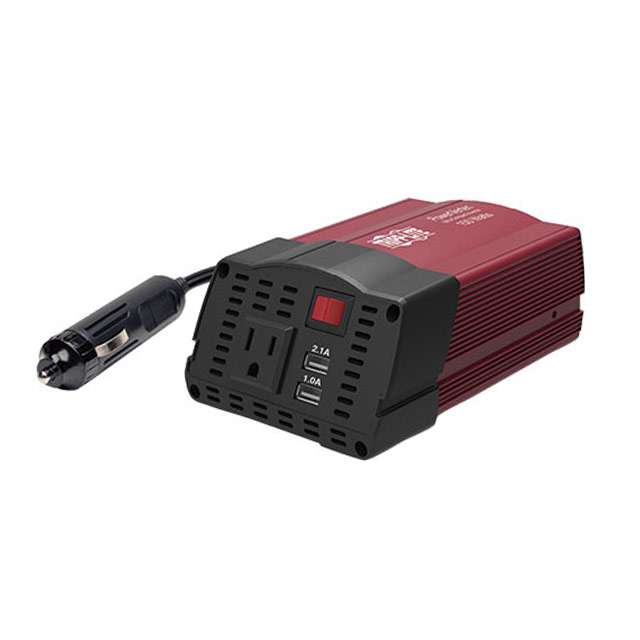

PV150USB
ActiveEaton Tripp Lite
INVERTER 12VDC 150W 1OUT
PV150USB
ActiveEaton Tripp Lite
INVERTER 12VDC 150W 1OUT
Description
General part information
PV150USB
12VDC Voltage Input 150 W Power Output Continuous Inverter 1 AC Outlets NEMA 5-15R
Technical Specifications
Parameters and characteristics for this part
| Specification | PV150USB |
|---|---|
| AC Outlets (Count) | 1 count |
| Connector - AC Output | NEMA 5-15R |
| Connector - Voltage Input | Cigarette Lighter Plug |
| Features | USB Port(s) |
| Power - Output Continuous | 150 VA |
| Power - Output Surge | 300 W |
| Remote Capability | No |
| Size Height | 4.25 " |
| Size Length | 5.82 in |
| Size Width | 2.48 in |
| Type | Inverter |
| Voltage - Input | 12 V |
| Voltage - Output | 120 V |
