1958536-1
ActiveTE Connectivity AMP Connectors

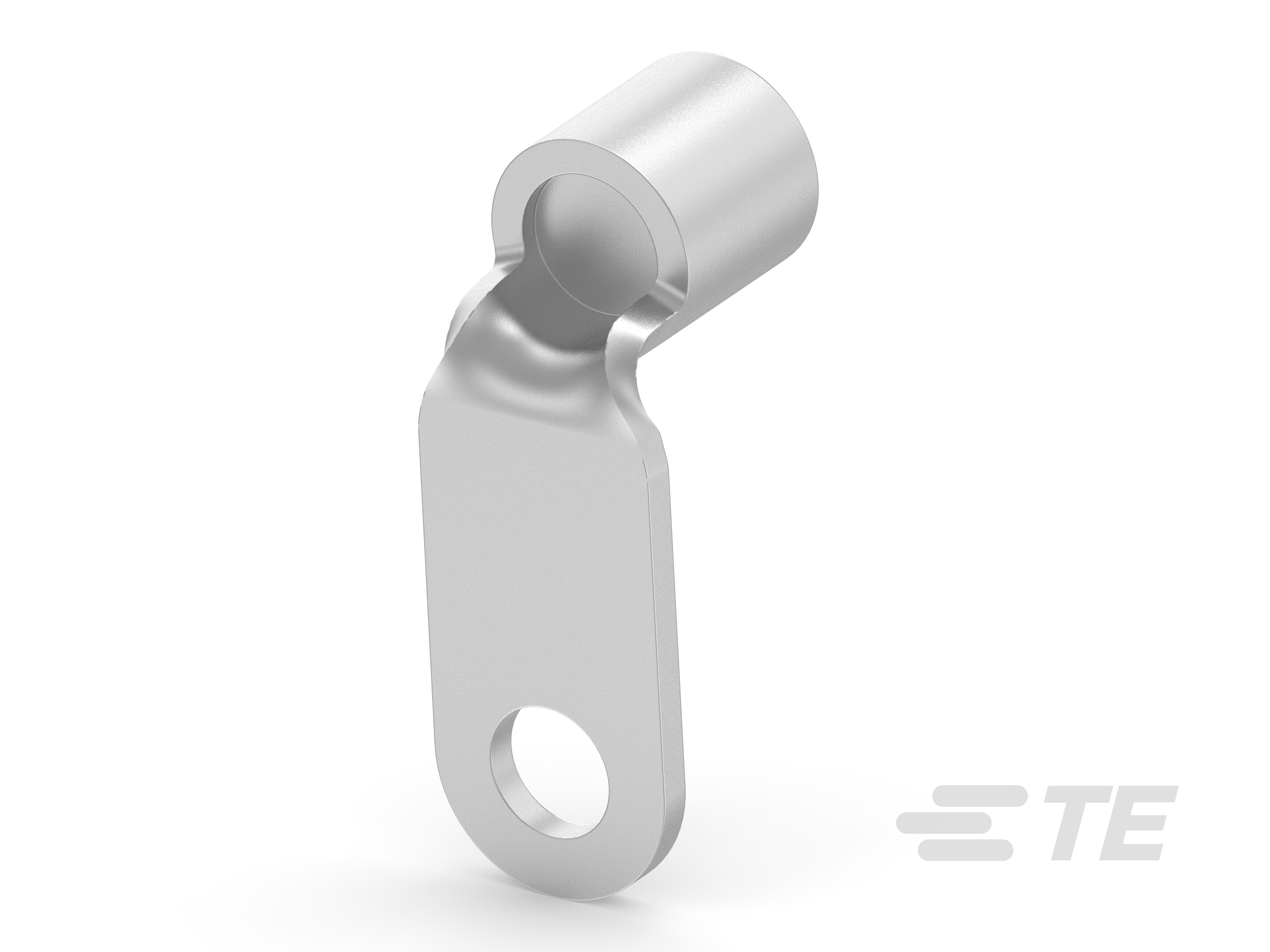

TERM,SOLIS, R, 4 AWG, 0.288 STUD 90 BEND
1958536-1
ActiveTE Connectivity AMP Connectors
TERM,SOLIS, R, 4 AWG, 0.288 STUD 90 BEND
Description
General part information
1958536-1
Closed Ring Tongue Terminal, 4 AWG, 7.32 mm [.288 in] Stud Diameter, Closed Barrel, Right Angle, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1958536-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Stud/Tab Size | M6 Stud, M6 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.07 in |
| Width - Outer Edges | 0.515 in |
| Wire Gauge | 4 AWG |
