Description
General part information

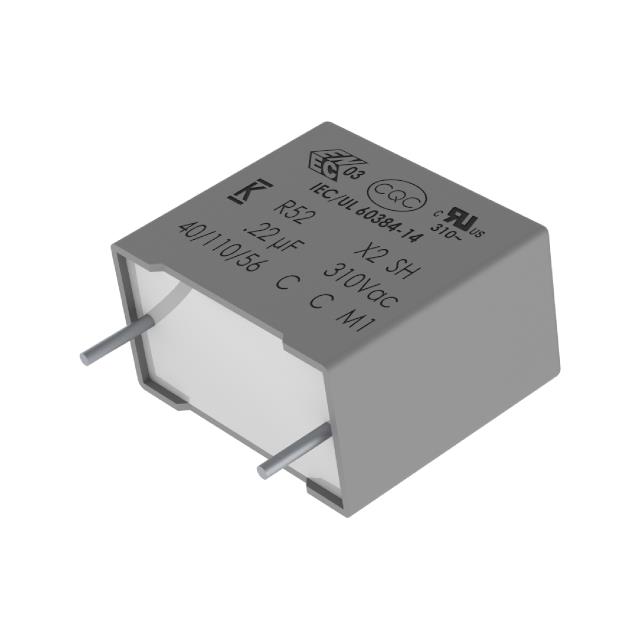

R523W510000P0K
CAP FILM SAFETY/EMI SUPP
Technical Specifications
Parameters and characteristics for this part
| Specification | R523W510000P0K |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 1.579 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2, AEC-Q200 |
| Size / Dimension Length | 1.634 in |
| Size / Dimension Width | 0.787 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 310 V |
| Voltage Rating - DC | 630 V |
