Description

General part information

DT06-08SD-P012

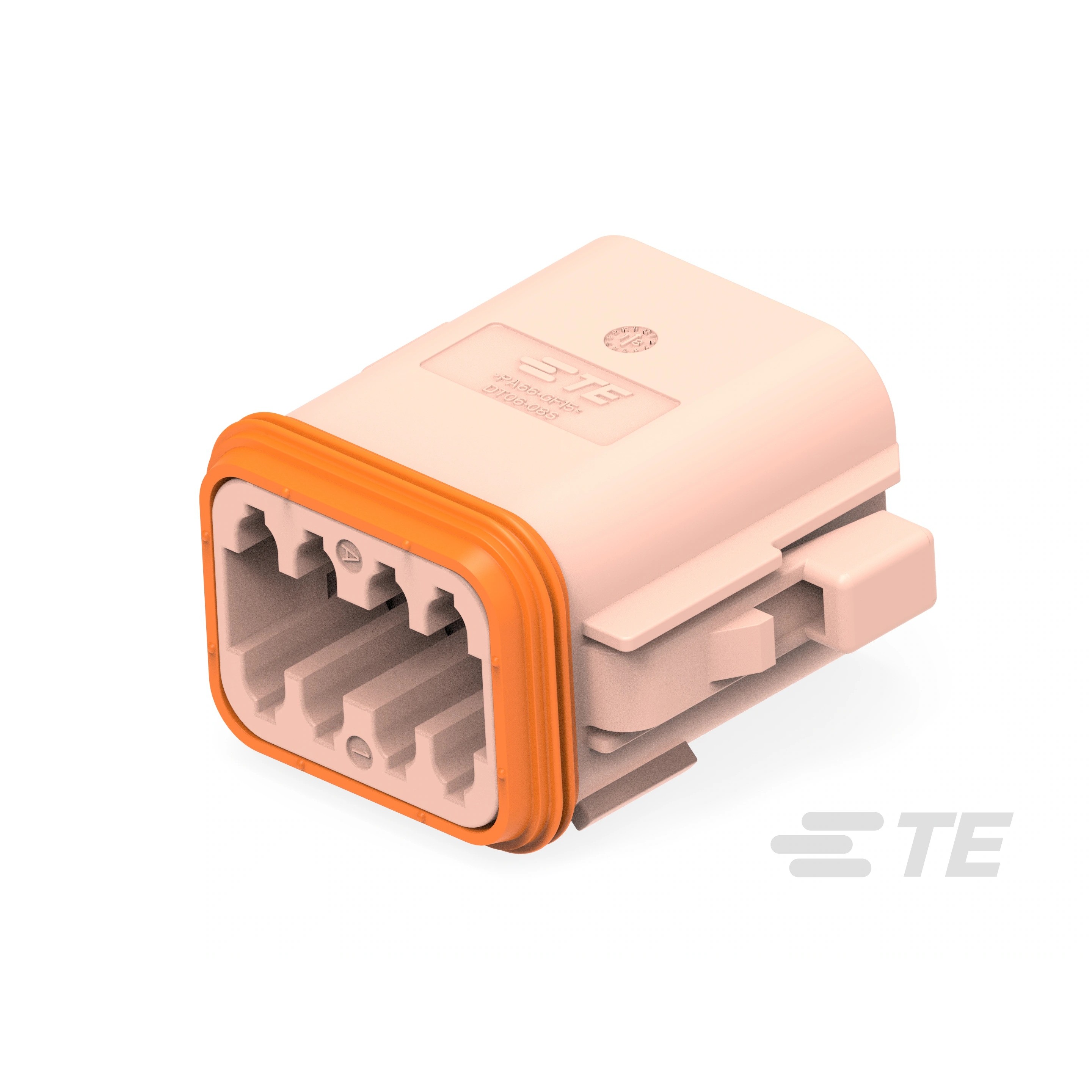

8 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Brown, Wire & Cable, Power

Technical Specifications

Parameters and characteristics for this part

SpecificationDT06-08SD-P012
ColorBrown
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
FeaturesSealed
Insulation MaterialNylon, Glass Filled, Polyamide (PA)
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.175 in
Row Spacing0.359 in
