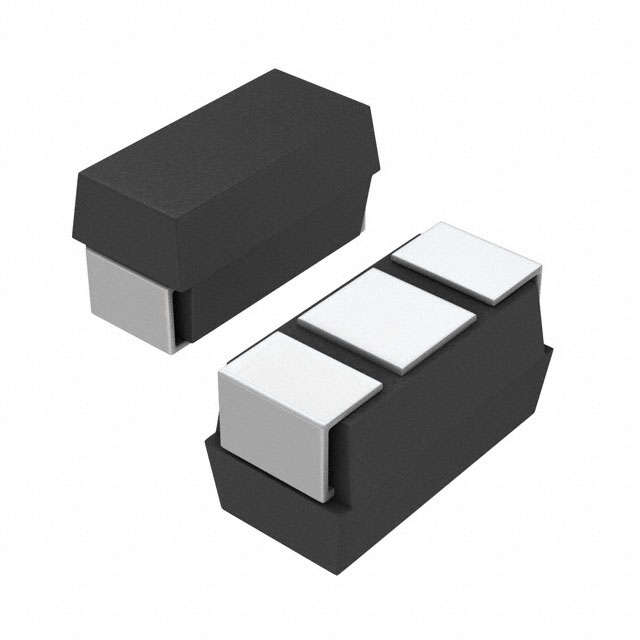

TR3W477K6R3C0050
ActiveVishay Dale
CAP TANT 470UF 10% 6.3V 2924
TR3W477K6R3C0050
ActiveVishay Dale
CAP TANT 470UF 10% 6.3V 2924
Description
General part information
TR3W477K6R3C0050
470 µF Molded Tantalum Capacitors 6.3 V 2924 (7361 Metric) 50mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TR3W477K6R3C0050 |
|---|---|
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 50 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.15 in |
| Manufacturer Size Code | W |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2924 (7361 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
