2389270-6
ActiveTE Connectivity AMP Connectors

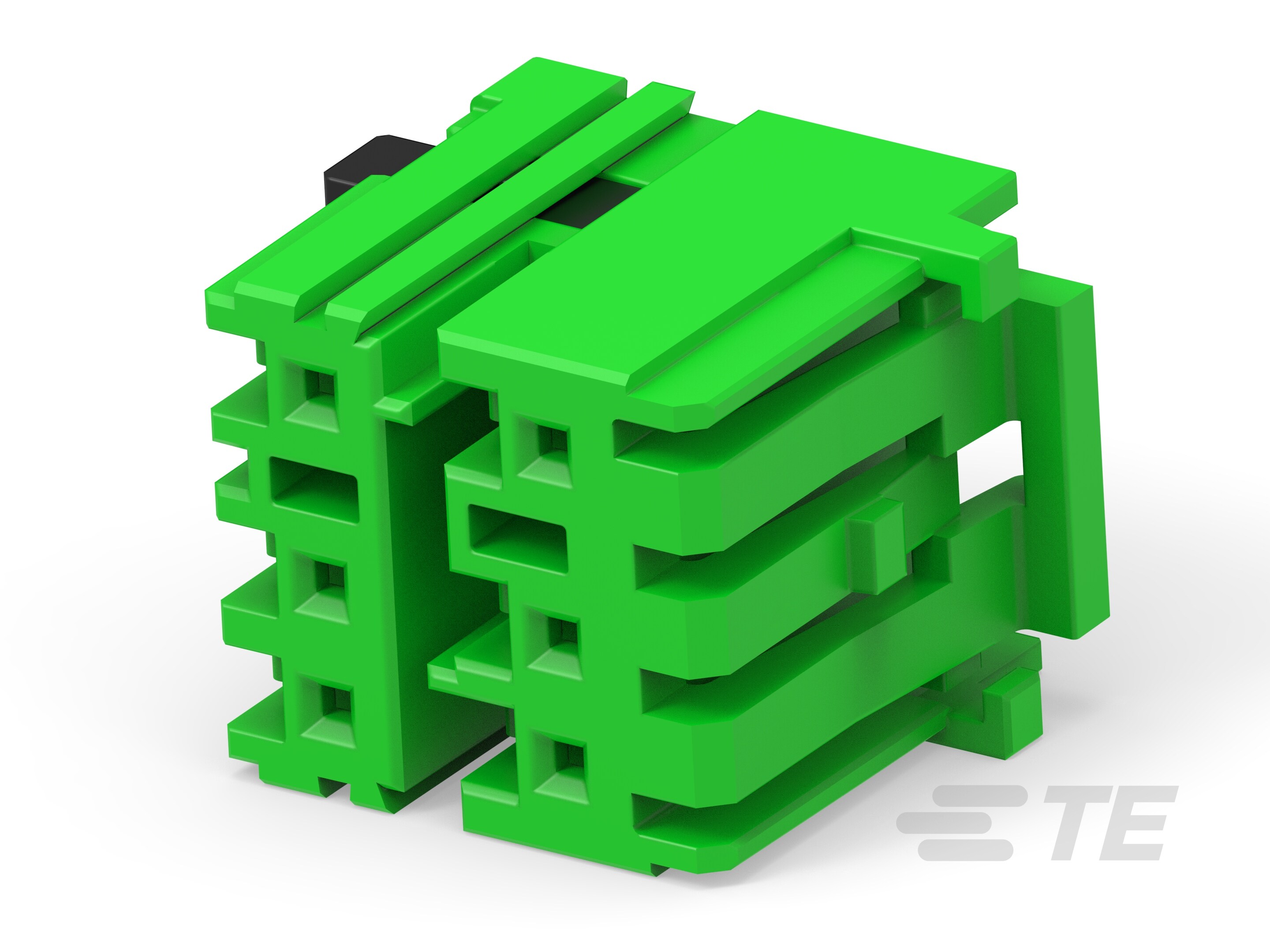

GI3.0MULTILOAD PLUG ASSY,6P,KEY F, GREEN
2389270-6
ActiveTE Connectivity AMP Connectors
GI3.0MULTILOAD PLUG ASSY,6P,KEY F, GREEN
Description
General part information
2389270-6
Housing, Plug, Wire-to-Board, 6 Position, 2 Row, Green, Wire & Cable, Power & Signal, Board Mount, -30 – 105 °C [-22 – 221 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2389270-6 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing | 0.185 in |
