EN3P2FX

Active

Switchcraft Inc.

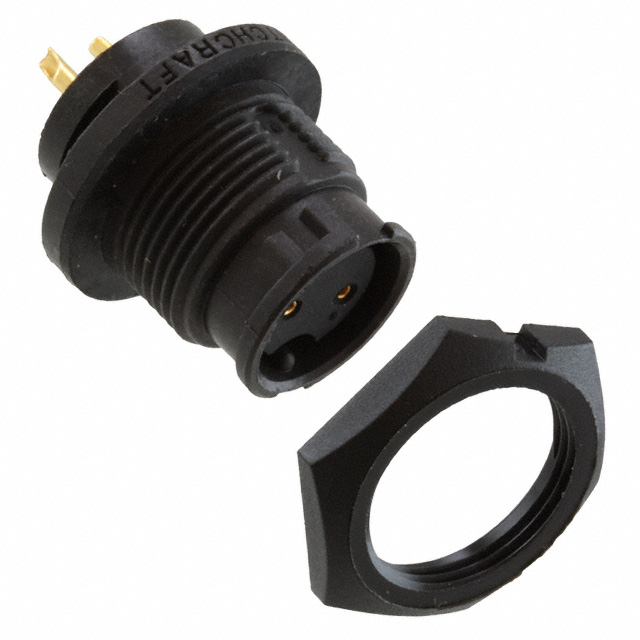

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P2FX

Active

Switchcraft Inc.

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.12
		10	$ 8.54
		25	$ 7.71
		50	$ 7.15
		100	$ 6.65
		300	$ 5.94
		500	$ 5.65
		1000	$ 5.28

Description

General part information

EN3P2F Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P2FX	EN3P2F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Solder, Crimp, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P2F Series

CONN CIRCULAR SKT 2 POS SOLDER RA THRU-HOLE 2 TERMINAL 1 PORT BULK

Part	Voltage Rating	Ingress Protection	Orientation	Contact Finish - Mating	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current Rating (Amps)	Mounting Feature	Mounting Type	Termination	Number of Positions	Contact Material	Material Flammability Rating	Fastening Type	Shielding	Color	Connector Type	Primary Material
Switchcraft Inc. EN3P2FRAPCX	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	7.5 A	Bulkhead - Front Side Nut	Panel Mount, Right Angle, Through Hole	Solder	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2FX	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	7.5 A	Bulkhead - Front Side Nut			2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2F16CX	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	13 A	Bulkhead - Front Side Nut		Crimp	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2FRAPCBN	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	5 A	Bulkhead - Front Side Nut	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2FCX	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	7.5 A	Bulkhead - Front Side Nut		Crimp	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2F16X	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	13 A	Bulkhead - Front Side Nut			2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2F16PX	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	13 A	Bulkhead - Front Side Nut	Panel Mount, Through Hole	Solder	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2FRAPCBW	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	5 A	Bulkhead - Front Side Nut	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
Switchcraft Inc. EN3P2FPX	250 VAC	IP66/IP68	Keyed	Gold	Elastomer	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	7.5 A	Bulkhead - Front Side Nut	Panel Mount, Through Hole	Solder	2	Copper Alloy	UL94 V-0	Bayonet Lock	Unshielded	Black	Receptacle, Female Sockets	Plastic
