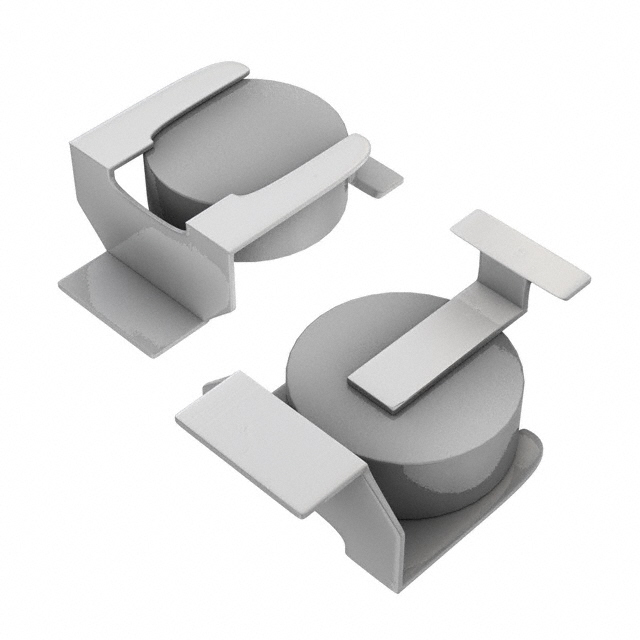

PTCTZ3NR339CTE
ObsoleteVishay Dale
PTC RESET FUSE 24V 400MA 2SMD
PTCTZ3NR339CTE
ObsoleteVishay Dale
PTC RESET FUSE 24V 400MA 2SMD
Description
General part information
PTCTZ3NR339CTE
Ceramic PTC Resettable Fuse 24V 400 mA Ih Surface Mount 2-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | PTCTZ3NR339CTE |
|---|---|
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Max | 8 A |
| Current - Trip (It) | 650 mA |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Resistance - 25°C (Typ) | 3.3 Ohms |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.394 in |
| Thickness (Max) | 0.142 in |
| Time to Trip | 6 s |
| Type | Ceramic |
| Voltage - Max | 24 V |
