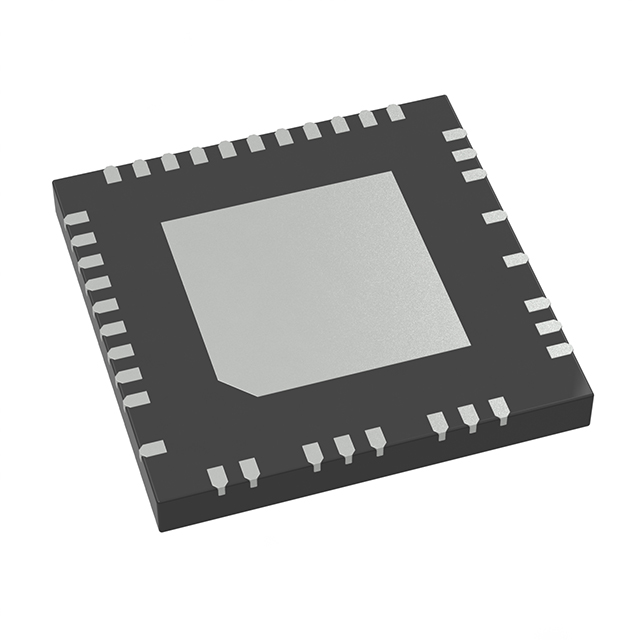

TMC6100-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC GATE DRVR HALF-BRIDGE 37QFN
Deep-Dive with AI
Search across all available documentation for this part.
TMC6100-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC GATE DRVR HALF-BRIDGE 37QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC6100-LA-T | TMC6100 Series |
|---|---|---|
| Channel Type | 3-Phase | 3-Phase |
| Contents | - | Board(s) |
| Current - Peak Output (Source, Sink) [custom] | 500 mA | 500 mA |
| Current - Peak Output (Source, Sink) [custom] | 500 mA | 500 mA |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Embedded | - | False |
| Function | - | Motor Controller/Driver |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| High Side Voltage - Max (Bootstrap) [Max] | 85 V | 85 V |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Drivers | 3 | 3 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Primary Attributes | - | Motors (BLDC, PMSM) |
| Rise / Fall Time (Typ) [custom] | 20 ns | 20 ns |
| Rise / Fall Time (Typ) [custom] | 20 ns | 20 ns |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 37-QFN-EP (7x7) | 37-QFN-EP (7x7) |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC6100, TMC4671 |
| Voltage - Supply [Max] | 60 V | 60 V |
| Voltage - Supply [Min] | 8 V | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.72 | |
| 10 | $ 3.84 | |||
| 25 | $ 3.36 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.55 | |||
| 500 | $ 2.39 | |||
| 1000 | $ 2.25 | |||
| Digi-Reel® | 1 | $ 5.72 | ||
| 10 | $ 3.84 | |||
| 25 | $ 3.36 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.55 | |||
| 500 | $ 2.39 | |||
| 1000 | $ 2.25 | |||
| Tape & Reel (TR) | 2000 | $ 2.14 | ||
| 4000 | $ 2.06 | |||
TMC6100 Series
EVAL BOARD FOR TMC6100
| Part | Contents | Supplied Contents | Embedded | Primary Attributes | Utilized IC / Part | Function | Type | Gate Type | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Channel Type | High Side Voltage - Max (Bootstrap) [Max] | Driven Configuration | Number of Drivers | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC6100-EVAL | Board(s) | Board(s) | Motors (BLDC, PMSM) | TMC6100 | Motor Controller/Driver | Power Management | ||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC6100-EVAL-KIT | Board(s) | Board(s) | Motors (BLDC, PMSM) | TMC4671, TMC6100 | Motor Controller/Driver | Power Management | ||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC6100-LA-T | N-Channel MOSFET | Surface Mount | 60 V | 8 V | 500 mA | 500 mA | 3-Phase | 85 V | Half-Bridge | 3 | -40 °C | 125 ¯C | 37-QFN-EP (7x7) | 20 ns | 20 ns |
Description
General part information
TMC6100 Series
Half-Bridge Gate Driver IC 37-QFN-EP (7x7)
Documents
Technical documentation and resources
No documents available
