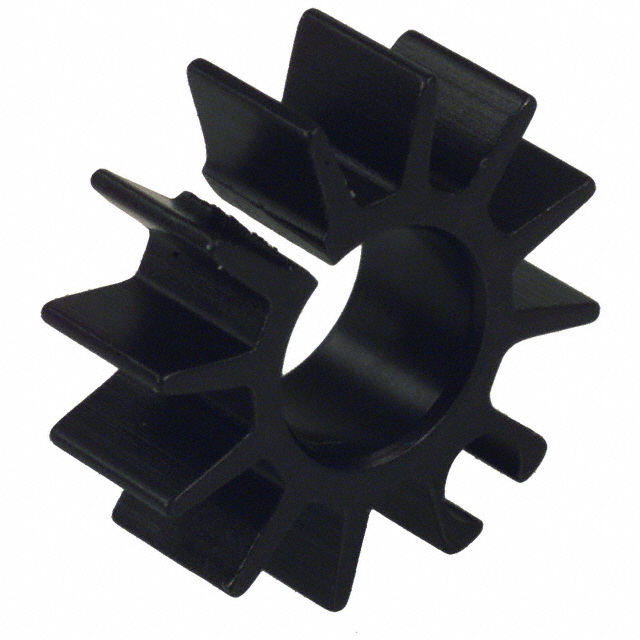

323005B00000G - 323005B00000G

323005B00000G

Active
Boyd Laconia, LLC

HEATSINK TO-5 2W BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandard Heatsinks CatalogHeat Sink Fabrications Guide+1
323005B00000G - 323005B00000G

323005B00000G

Active
Boyd Laconia, LLC

HEATSINK TO-5 2W BLK

Deep-Dive with AI

DocumentsStandard Heatsinks CatalogHeat Sink Fabrications Guide+1

Technical Specifications

Parameters and characteristics for this part

Specification323005B00000G
Attachment MethodPress Fit
Diameter [custom]8.07 mm
Diameter [custom]19.05 mm
Diameter [custom]0.318 "
Diameter [custom]0.75 "
Fin Height [z]6.35 mm
Fin Height [z]0.25 in
MaterialAluminum
Material FinishBlack Anodized
Package CooledTO-5
Power Dissipation @ Temperature Rise1.4 W, 70 °C
ShapeCylindrical
Thermal Resistance @ Forced Air Flow200 LFM, 35 °C/W
TypeBoard Level

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 4.66
10$ 4.12
25$ 3.93
50$ 3.78
100$ 3.65
250$ 3.47
500$ 3.35
1000$ 3.23

Description

General part information

323005B00000G

Heat Sink TO-5 Aluminum 1.4W @ 70°C Board Level
