DSPIC30F6010-30I/PF
ActiveMicrochip Technology

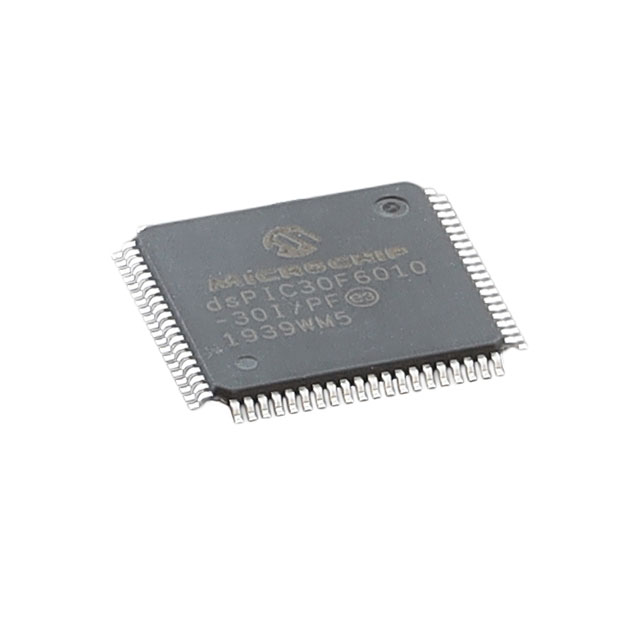

16-BIT, FLASH, 30 MHZ, RISC MICROCONTROLLER, PQFP80, 14 X 14 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-80
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC30F6010-30I/PF
ActiveMicrochip Technology
16-BIT, FLASH, 30 MHZ, RISC MICROCONTROLLER, PQFP80, 14 X 14 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-80
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DSPIC30F6010-30I/PF | DSPIC30F6010 Series |
|---|---|---|
| Connectivity [custom] | I2C, CANbus, UART/USART, SPI | I2C, CANbus, UART/USART, SPI |
| Core Processor | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | A/D 16x10b | A/D 16x10b |
| EEPROM Size | 4 K | 4 K |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 68 | 68 |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 80-TQFP | 80-TQFP |
| Peripherals | POR, WDT, Brown-out Detect/Reset, PWM, Motor Control PWM, QEI, LVD | POR, WDT, Brown-out Detect/Reset, PWM, Motor Control PWM, QEI, LVD |
| Program Memory Size | 144 KB | 144 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 8K x 8 | 8K x 8 |
| Speed | 30 MIPs | 20 - 30 MIPS |
| Supplier Device Package | 80-TQFP (14x14) | 80-TQFP (14x14), 80-TQFP (12x12) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.5 V | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 1 | $ 28.70 | |
| 1 | $ 28.70 | |||
| 25 | $ 24.21 | |||
| 25 | $ 24.21 | |||
| 100 | $ 28.26 | |||
| 100 | $ 28.26 | |||
| DigiKey | N/A | 1 | $ 27.92 | |
| 1 | $ 27.85 | |||
| Digikey | Tray | 1 | $ 27.92 | |
| Farnell | N/A | 1 | $ 21.24 | |
| 10 | $ 16.38 | |||
| 100 | $ 15.96 | |||
| Future Electronics | N/A | 90 | $ 26.53 | |
| 90 | $ 26.53 | |||
| Master Electronics | N/A | 113 | $ 82.74 | |
| 113 | $ 82.74 | |||
| 225 | $ 42.45 | |||
| 225 | $ 42.45 | |||
| 338 | $ 28.85 | |||
| 338 | $ 28.85 | |||
| 450 | $ 28.27 | |||
| 450 | $ 28.27 | |||
| Microchip Direct | TRAY | 1 | $ 24.83 | |
| 25 | $ 24.23 | |||
| 100 | $ 23.63 | |||
| 1000 | $ 21.75 | |||
| 5000 | $ 20.66 | |||
| Microchip Technology Inc | N/A | 1 | $ 24.83 | |
| 1 | $ 24.83 | |||
| 25 | $ 24.23 | |||
| 25 | $ 24.23 | |||
| 100 | $ 23.63 | |||
| 100 | $ 23.63 | |||
| 1000 | $ 21.75 | |||
| 1000 | $ 21.75 | |||
| 5000 | $ 20.66 | |||
| 5000 | $ 20.66 | |||
| Mouser Electronics | N/A | 1 | $ 27.62 | |
| 1 | $ 27.62 | |||
| 10 | $ 27.61 | |||
| 10 | $ 27.61 | |||
| 25 | $ 27.60 | |||
| 25 | $ 27.60 | |||
| 90 | $ 27.53 | |||
| 90 | $ 27.53 | |||
| Onlinecomponents.com | N/A | 113 | $ 82.74 | |
| 113 | $ 82.74 | |||
| 225 | $ 42.45 | |||
| 225 | $ 42.45 | |||
| 338 | $ 28.85 | |||
| 338 | $ 28.85 | |||
| 450 | $ 28.27 | |||
| 450 | $ 28.27 | |||
| TME | N/A | 1 | $ 36.72 | |
| 1 | $ 36.72 | |||
| 5 | $ 35.54 | |||
| 5 | $ 35.54 | |||
| 25 | $ 33.17 | |||
| 25 | $ 33.17 | |||
| 90 | $ 30.80 | |||
| 90 | $ 30.80 | |||
DSPIC30F6010 Series
IC MCU 16BIT 144KB FLASH 80TQFP
| Part | Connectivity [custom] | Core Processor | Data Converters | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Core Size | Number of I/O | EEPROM Size | Package / Case | Program Memory Type | Speed | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Peripherals | Supplier Device Package | RAM Size | Oscillator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology DSPIC30F6010T-20I/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010AT-30I/PT | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 30 MIPs | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (12x12) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010-30I/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 30 MIPs | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010A-30I/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 30 MIPs | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010T-30I/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 30 MIPs | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010A-20E/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 125 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010A-30I/PT | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 30 MIPs | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (12x12) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010A-20E/PT | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 125 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (12x12) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010AT-30I/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 30 MIPs | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010-20I/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010T-20E/PF | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 125 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (14x14) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010AT-20E/PT | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 125 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (12x12) | 8K x 8 | Internal |
Microchip Technology DSPIC30F6010A-20I/PT | CANbus, I2C, SPI, UART/USART | dsPIC | A/D 16x10b | 85 °C | -40 °C | Surface Mount | 16-Bit | 68 | 4 K | 80-TQFP | FLASH | 20 MIPS | 144 KB | 2.5 V | 5.5 V | Brown-out Detect/Reset, LVD, Motor Control PWM, POR, PWM, QEI, WDT | 80-TQFP (12x12) | 8K x 8 | Internal |
Description
General part information
DSPIC30F6010 Series
dsPIC dsPIC™ 30F Microcontroller IC 16-Bit 30 MIPs 144KB (48K x 24) FLASH 80-TQFP (14x14)
