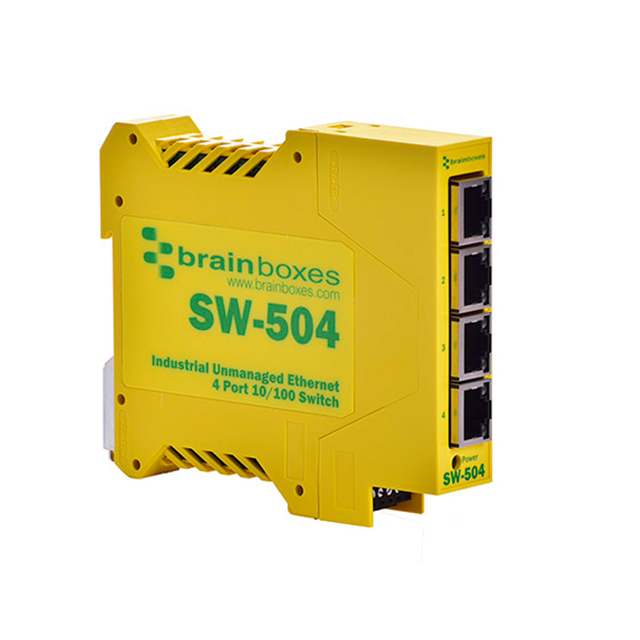

SW-504
ActiveSWITCH, 4 PORTS, INDUSTRIAL, UNMANAGED FAST ETHERNET, DIN RAIL, RJ45 X 4, 10MBPS, 100MBPS
SW-504
ActiveSWITCH, 4 PORTS, INDUSTRIAL, UNMANAGED FAST ETHERNET, DIN RAIL, RJ45 X 4, 10MBPS, 100MBPS
Description
General part information
SW-504
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-504 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Copper Ports | 4 |
| Copper Type | 10/100 |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Ports | 4 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (Maximum) | 30 V |
| Voltage - Input (Minimum) | 5 V |
