FMWAN090-10SF
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-90-
FMWAN090-10SF
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-90-
Description
General part information
FMWAN090-10SF

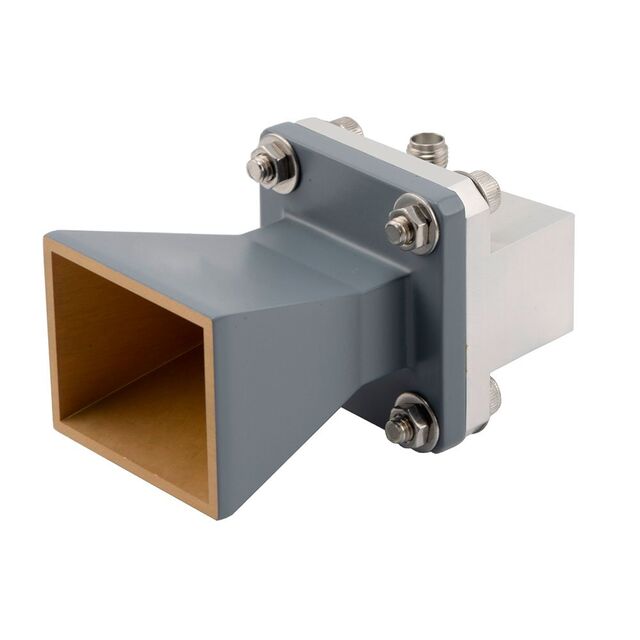

RF ANTENNA General Purpose Horn SMA Female Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN090-10SF |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 10.3 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 12.4 GHz |
| Frequency Range (Min) | 8.2 GHz |
| Gain | 10 dBi |
| Height (Max) | 1.1 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination Type | SMA Female |
| VSWR | 1.25 |
