1-534206-0
ActiveTE Connectivity AMP Connectors

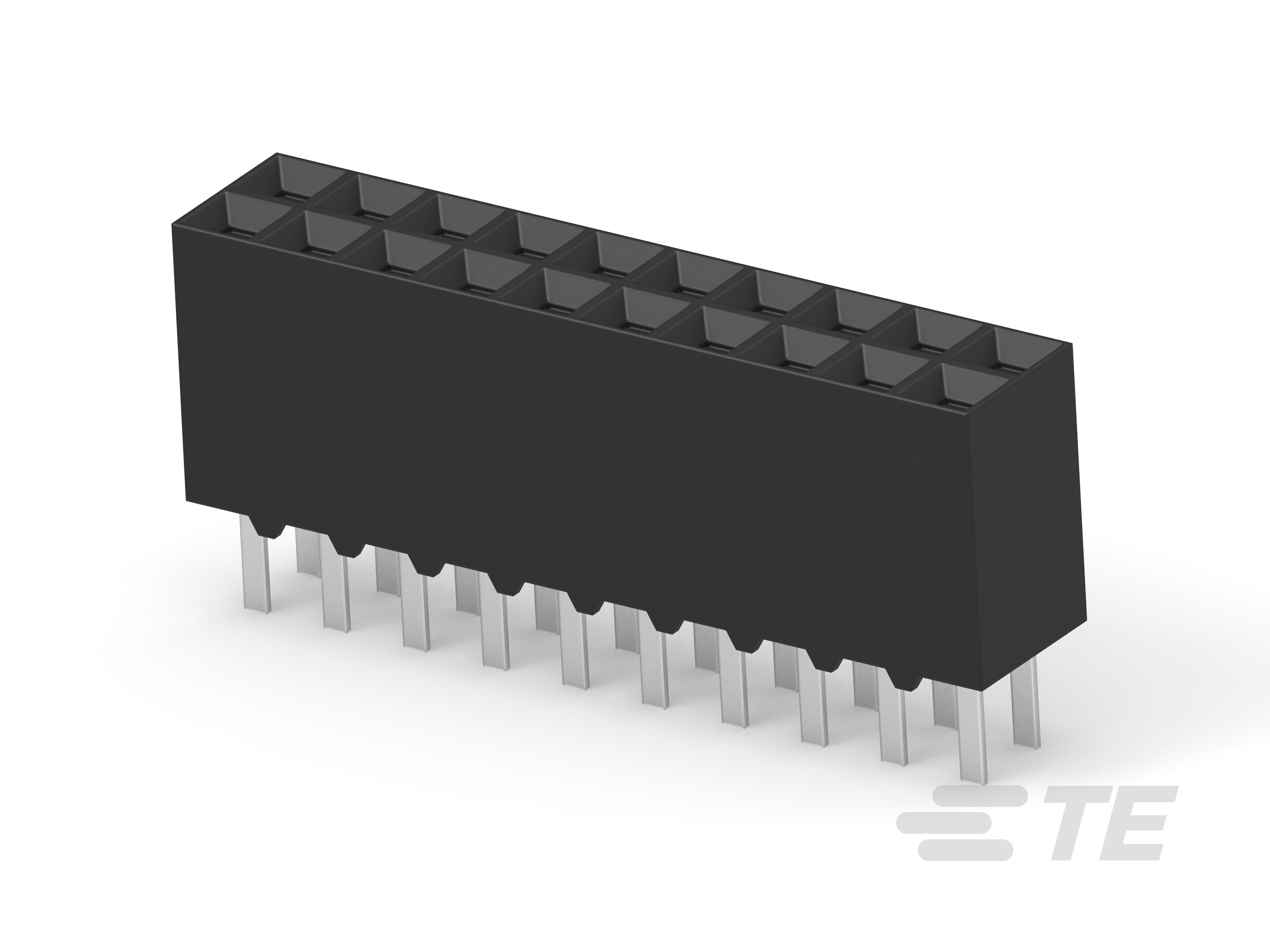

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT
1-534206-0
ActiveTE Connectivity AMP Connectors
PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT
Description
General part information
Modu Connector System Series
The 1-534206-0 is a Board-to-board Header and Receptacle Connector with through hole solder termination method to PC board. The double beam contact connector is available with double rows of contacts.
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-534206-0 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Finish Thickness - Post | 150 µin |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.32 in |
| Insulation Material | Polyester, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Style | Board, Board or Cable |
| Termination | Solder |
