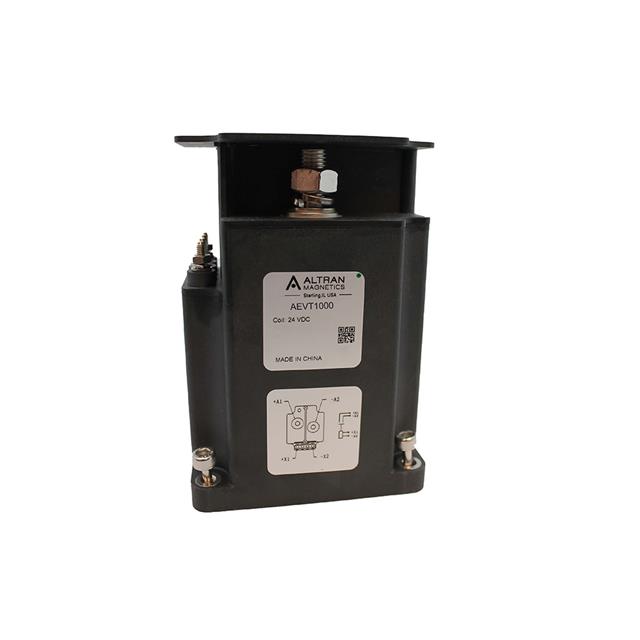

AEVT1000-C
ActiveAltran Magnetics, LLC
DC CONTACTOR 1000A 24VDC COIL
AEVT1000-C
ActiveAltran Magnetics, LLC
DC CONTACTOR 1000A 24VDC COIL
Description
General part information
AEVT1000-C
DC CONTACTOR 1000A 24VDC COIL
Technical Specifications
Parameters and characteristics for this part
| Specification | AEVT1000-C |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 1 kA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 20 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 40 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 20 ms |
| Switching Voltage DC (Max) | 1800 VDC |
| Termination Style | Stud |
