STTH60AC06CP

Active

STMicroelectronics

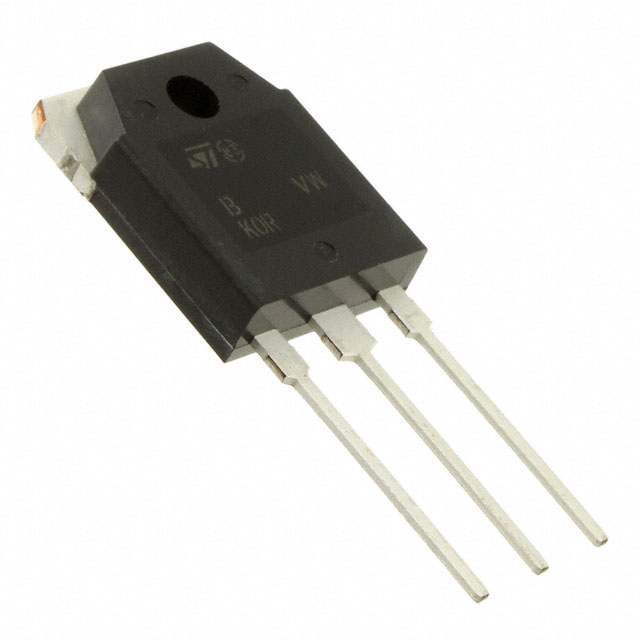

DIODE ARRAY GP 600V 30A TO3P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDiodes & Rectifiers Selection Guide Datasheet

STTH60AC06CP

Active

STMicroelectronics

DIODE ARRAY GP 600V 30A TO3P

Deep-Dive with AI

DocumentsDiodes & Rectifiers Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STTH60AC06CP	STTH60 Series

Current - Average Rectified (Io)	-	60 A
Current - Average Rectified (Io) (per Diode)	30 A	30 - 40 A
Current - Reverse Leakage @ Vr	10 µA	10 - 80 µA
Diode Configuration	1 Pair Common Cathode	1 Pair Common Cathode, 2 Independent
Diode Type	-	Single Phase
Mounting Type	Through Hole	Through Hole, Chassis Mount, Surface Mount
Operating Temperature	-	-40 C
Operating Temperature	-	175 °C
Operating Temperature - Junction	-	150 °C
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	SC-65-3, TO-3P-3	TO-247-3, ISOTOP, SC-65-3, TO-3P-3, TO-247-2, DO-247-2 (Straight Leads), 9-SMD Module
Reverse Recovery Time (trr)	40 ns	30 - 105 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-3P	TO-247 Long Leads, TO-247, ISOTOP®, TO-3P, DO-247 LL, DO-247, TO-247-3, ACEPACK SMIT
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V	200 - 600 V
Voltage - Forward (Vf) (Max) @ If	1.75 V	1.15 - 2.95 V
Voltage - Peak Reverse (Max)	-	600 V

STTH60 Series

600 V, 60 A dual ISOTOP Low Drop Ultrafast diode

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Reverse Recovery Time (trr)	Diode Configuration	Package / Case	Current - Average Rectified (Io) (per Diode)	Mounting Type	Operating Temperature - Junction [Max]	Technology	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Operating Temperature - Junction	Current - Average Rectified (Io)
STMicroelectronics STTH60RQ06CWL	600 V	200 mA, 500 ns	55 ns	1 Pair Common Cathode	TO-247-3	30 A	Through Hole	175 °C	Standard	40 µA	2.95 V	TO-247 Long Leads
STMicroelectronics STTH60AC06CW	600 V	200 mA, 500 ns	40 ns	1 Pair Common Cathode	TO-247-3	30 A	Through Hole	175 °C	Standard	10 µA	1.75 V	TO-247
STMicroelectronics STTH60L06TV1	600 V	200 mA, 500 ns	90 ns	2 Independent	ISOTOP	40 A	Chassis Mount		Standard	25 µA	1.55 V	ISOTOP®	150 °C
STMicroelectronics STTH60AC06CP	600 V	200 mA, 500 ns	40 ns	1 Pair Common Cathode	SC-65-3, TO-3P-3	30 A	Through Hole	175 °C	Standard	10 µA	1.75 V	TO-3P
STMicroelectronics STTH60AC06CWL	600 V	200 mA, 500 ns	70 ns	1 Pair Common Cathode	TO-247-3	30 A	Through Hole	175 °C	Standard	10 µA	1.75 V	TO-247
STMicroelectronics STTH60RQ06WL	600 V	200 mA, 500 ns	65 ns		TO-247-2		Through Hole	175 °C	Standard	80 µA	2.95 V	DO-247 LL		60 A
STMicroelectronics STTH60W02CW	200 V	200 mA, 500 ns	30 ns	1 Pair Common Cathode	TO-247-3	30 A	Through Hole	175 °C	Standard	10 µA	1.15 V	TO-247
STMicroelectronics STTH60L06TV2	600 V	200 mA, 500 ns	90 ns	2 Independent	ISOTOP	40 A	Chassis Mount		Standard	25 µA	1.55 V	ISOTOP®	150 °C
STMicroelectronics STTH60L06W	600 V	200 mA, 500 ns	105 ns		DO-247-2 (Straight Leads)		Through Hole	175 °C	Standard	50 µA	1.55 V	DO-247		60 A
STMicroelectronics STTH60L06CW	600 V	200 mA, 500 ns	90 ns	1 Pair Common Cathode	TO-247-3	40 A	Through Hole	175 °C	Standard	25 µA	1.55 V	TO-247-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.30
		30	$ 4.20
		120	$ 3.60

Description

General part information

STTH60 Series

The STTH60L06TV, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial applications (such as welding), as rectification diode.
