Description
General part information
FMCA1489-48

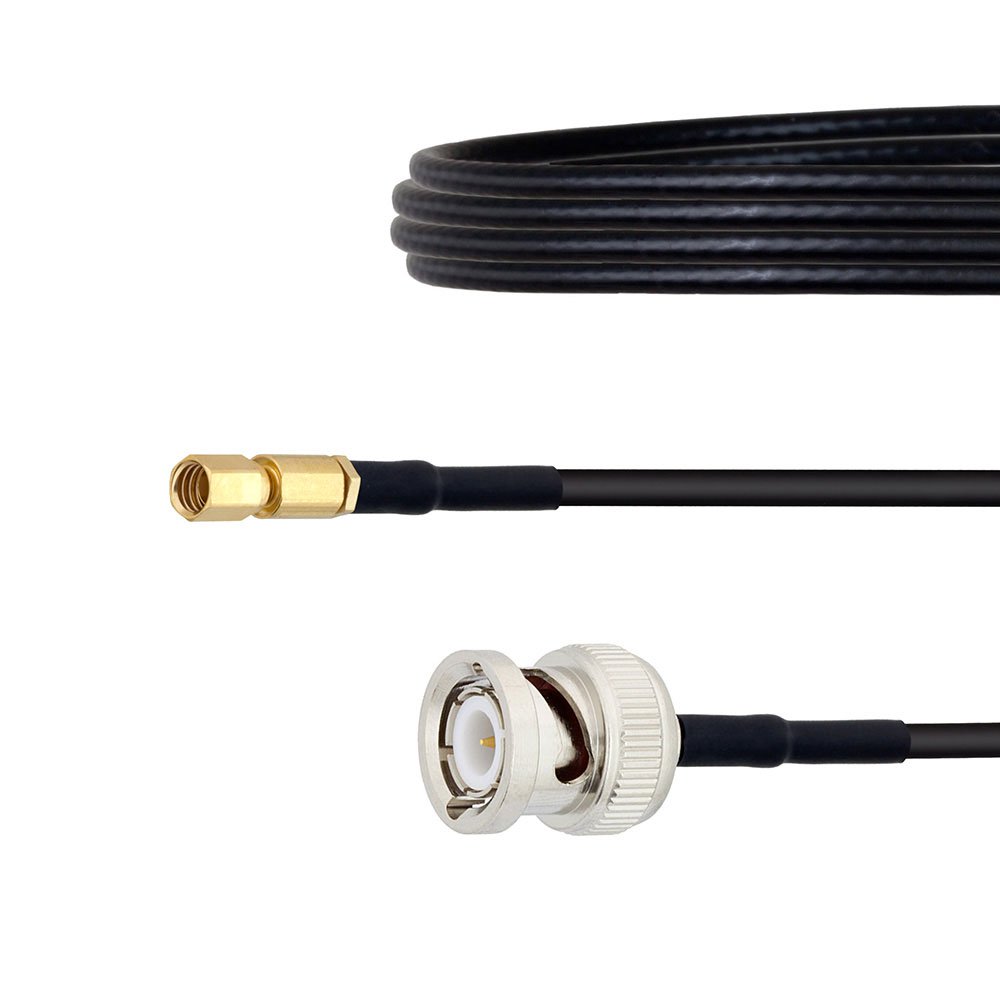

Cable Assembly Coaxial BNC to SSMC LMR 100 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1489-48 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SSMC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC, SSMC |
