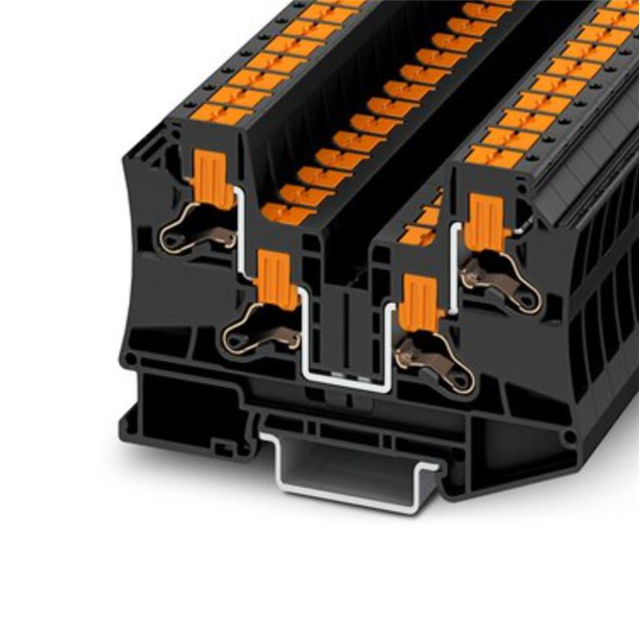

Specification	1291928

Color	Black
Current - IEC	41 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	4
Stripping Length (Max)	12 mm
Stripping Length (Min)	10 mm
Terminal Width	8.2 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	1000 V
Wire Gauge or Range - AWG (Max)	20 AWG
Wire Gauge or Range - AWG (Min)	8 AWG
Wire Gauge or Range - mm² (Maximum)	10 mm²
Wire Gauge or Range - mm² (Minimum)	0.5 mm²
