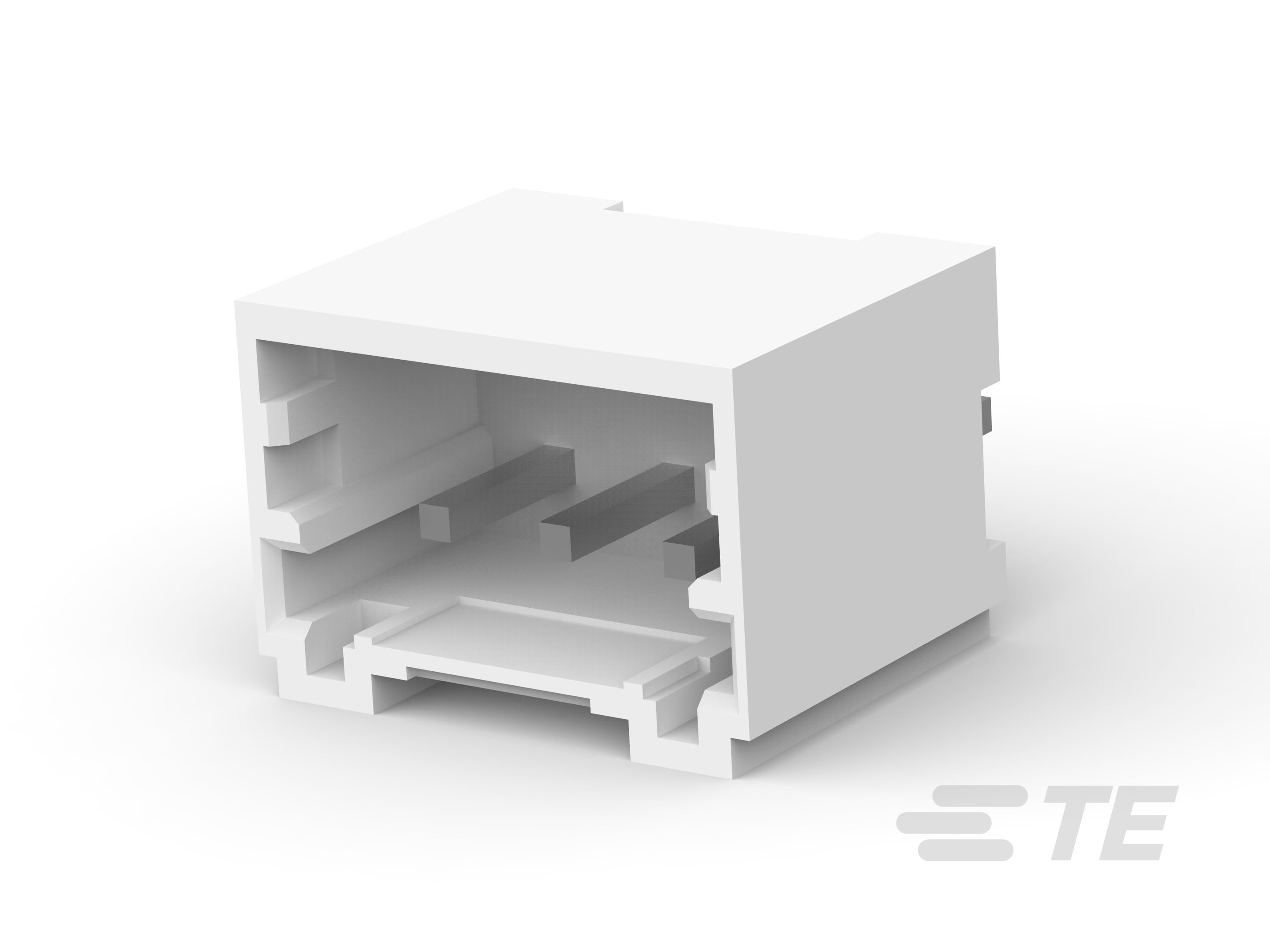

Specification	1971032-3

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.102 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Lock
Insulation Color	Natural
Insulation Height	0.256 in
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

GRACE INERTIA 2.0 Series

...

Part	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Mounting Type	Pitch	Fastening Type	Insulation Material	Color	Number of Rows	Contact Termination	Contact Type	Pitch - Mating	Voltage Rating	Termination	Features	Insulation Color	Contact Material	Material Flammability Rating	Insulation Height	Contact Length - Post	Current Rating	Current Rating	Number of Positions Loaded	Contact Finish - Post	Shrouding	Contact Finish - Mating	Contact Shape	Style	Contact Finish Thickness - Mating	Applications	Row Spacing - Mating
TE Connectivity AMP Connectors 1-2232979-7	7	-40 °C	105 °C	Plug	Free Hanging (In-Line)	0.079 in	Latch Holder	Thermoplastic	Natural	1	Crimp	Female Socket
TE Connectivity AMP Connectors 2-1971032-6	6	-30 °C	105 °C	Header	Through Hole		Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)		1		Male Pin	0.079 in	50 V	Solder	Board Lock	Blue	Brass	UL94 V-0	0.256 in	0.102 in	0 A	Varies by Wire Gauge	All	Tin	Shrouded - 4 Wall	Tin	Square	Board Cable/Wire
TE Connectivity AMP Connectors 4-2232829-9	9	-40 °C	105 °C	Header	Surface Mount		Latch Holder	Nylon Polyamide (PA)		1		Male Pin	0.079 in	50 V	Solder	Solder Retention	Black	Brass	UL94 V-0	0.252 in		2 A		All	Tin	Shrouded - 4 Wall	Tin	Square	Board Cable/Wire	78.7 Ąin
TE Connectivity AMP Connectors 1971032-5	5	-30 °C	105 °C	Header	Through Hole		Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)		1		Male Pin	0.079 in	50 V	Solder	Board Lock	Natural	Brass	UL94 V-0	0.256 in	0.102 in	0 A	Varies by Wire Gauge	All	Tin	Shrouded - 4 Wall	Tin	Square	Board Cable/Wire		General Purpose
TE Connectivity AMP Connectors 1-2232979-5	5	-40 °C	105 °C	Plug	Free Hanging (In-Line)	0.079 in	Latch Holder	Thermoplastic	Natural	1	Crimp	Female Socket
TE Connectivity AMP Connectors 2-2232979-0	10	-40 °C	105 °C	Plug	Free Hanging (In-Line)	0.079 in	Latch Holder	Thermoplastic	Natural	1	Crimp	Female Socket
TE Connectivity AMP Connectors 1-2232979-4	4	-40 °C	105 °C	Plug	Free Hanging (In-Line)	0.079 in	Latch Holder	Thermoplastic	Natural	1	Crimp	Female Socket
TE Connectivity AMP Connectors 2013924-1	10	-30 °C	105 °C	Header	Through Hole		Latch Holder	Nylon 6/6 Polyamide (PA66)		2		Male Pin	0.079 in		Kinked Pin Solder	Board Guide	Natural	Brass	UL94 V-0	0.445 in	0.118 in			All	Tin	Shrouded - 4 Wall	Tin	Rectangular	Board Cable/Wire			0.205 in
TE Connectivity AMP Connectors 1971032-6	6	-30 °C	105 °C	Header	Through Hole		Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)		1		Male Pin	0.079 in	50 V	Solder	Board Lock	Natural	Brass	UL94 V-0	0.256 in	0.102 in	0 A	Varies by Wire Gauge	All	Tin	Shrouded - 4 Wall	Tin	Square	Board Cable/Wire		General Purpose
TE Connectivity AMP Connectors 4-2232826-3	3	-40 °C	105 °C	Header	Through Hole		Latch Holder	Nylon 6/6 Polyamide (PA66)		1		Male Pin	0.079 in	50 V	Kinked Pin Solder		Black		UL94 V-0			2 A		All	Tin	Shrouded - 4 Wall	Tin	Square	Board Cable/Wire	80 µin
