Description
General part information

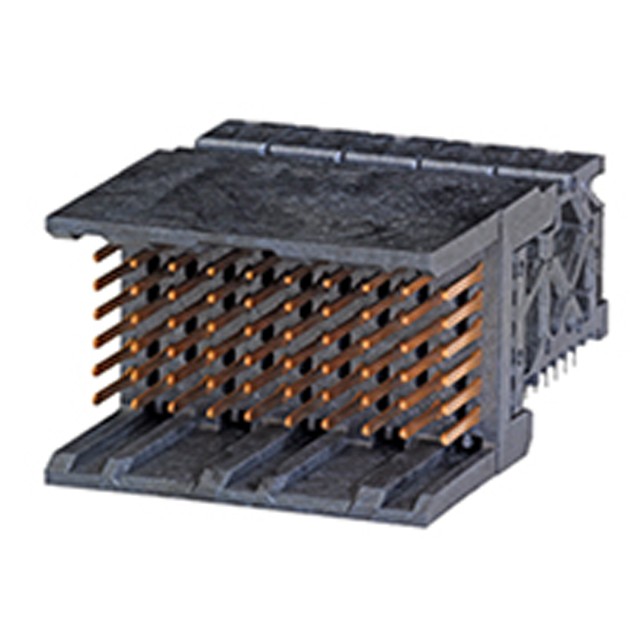

0764501137
CONN HDR IMPACT 60POS EDGE MNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0764501137 |
|---|---|
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Differential Pairs (Typical) | 20 |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 10 |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 6 |
| Pitch | 0.053 in |
| Termination | Press-Fit |
