1-2338183-9
ActiveTE Connectivity AMP Connectors

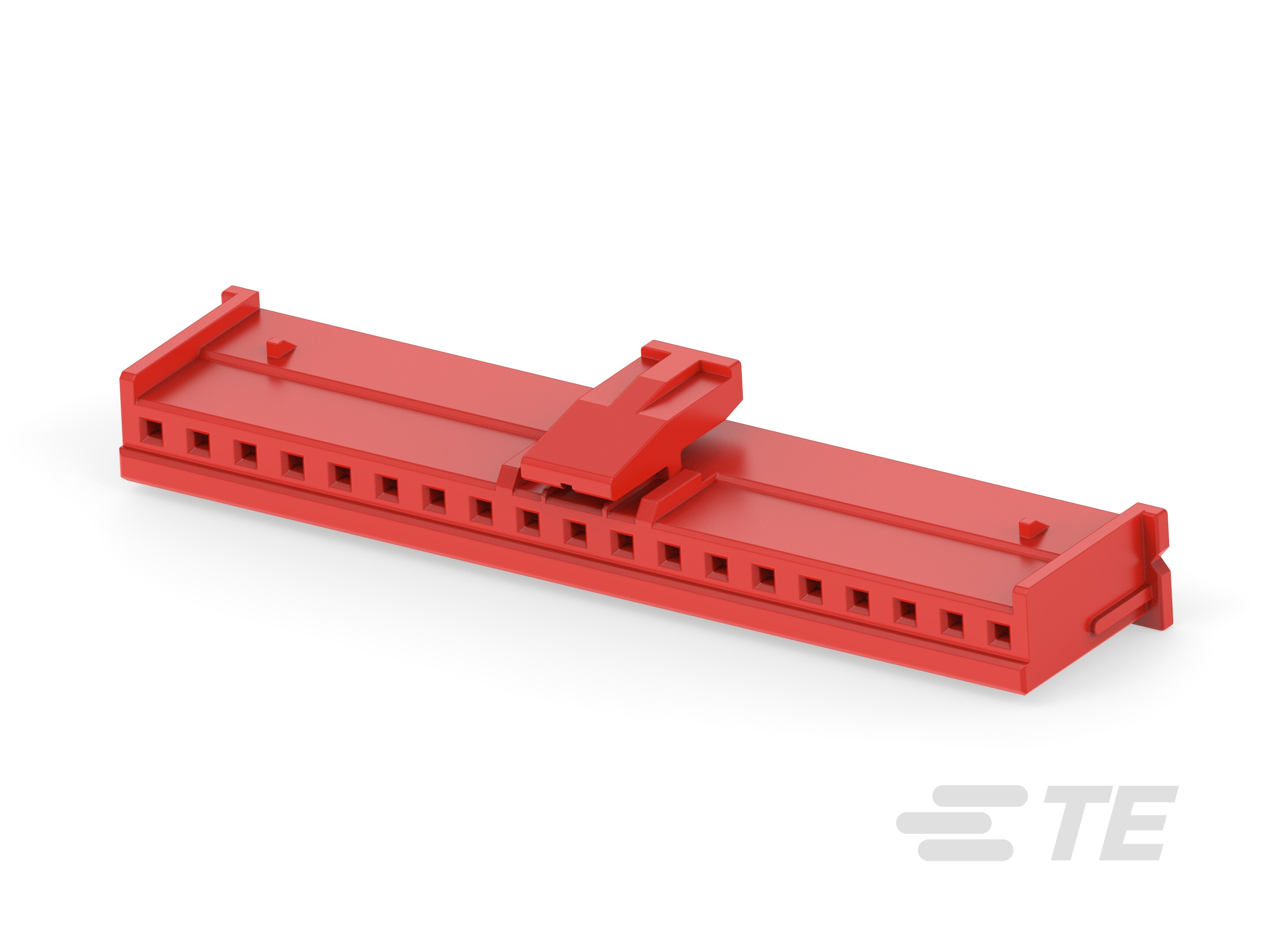

EP 2.5 HOUSING 19P, RED, UL VERSION
1-2338183-9
ActiveTE Connectivity AMP Connectors
EP 2.5 HOUSING 19P, RED, UL VERSION
Description
General part information
1-2338183-9
Housing, Receptacle, Wire-to-Board, 19 Position, 2.5 mm [.098 in] Centerline, Crimp, 1 Row, Red, Wire & Cable, Power & Signal, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2338183-9 |
|---|---|
| Color | Red |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 19 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.098 in |
