VE09P00151K
ObsoleteKYOCERA AVX

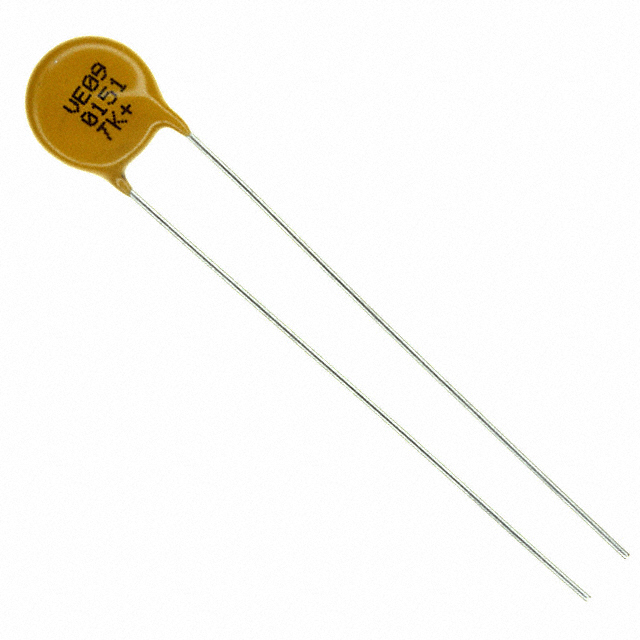

VARISTOR 240V 1.75KA DISC 9MM
VE09P00151K
ObsoleteKYOCERA AVX
VARISTOR 240V 1.75KA DISC 9MM
Description
General part information
VE09P00151K
240 V 1.75 kA Varistor 1 Circuit Through Hole Disc 9mm
Technical Specifications
Parameters and characteristics for this part
| Specification | VE09P00151K |
|---|---|
| Capacitance | 220 pF |
| Current - Surge | 1750 A |
| Energy | 21 J |
| Maximum AC Volts | 150 V |
| Maximum DC Voltage | 200 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 9 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 264 V |
| Varistor Voltage (Min) | 216 V |
| Varistor Voltage (Typ) | 240 V |
