Description
General part information
PRT-12614

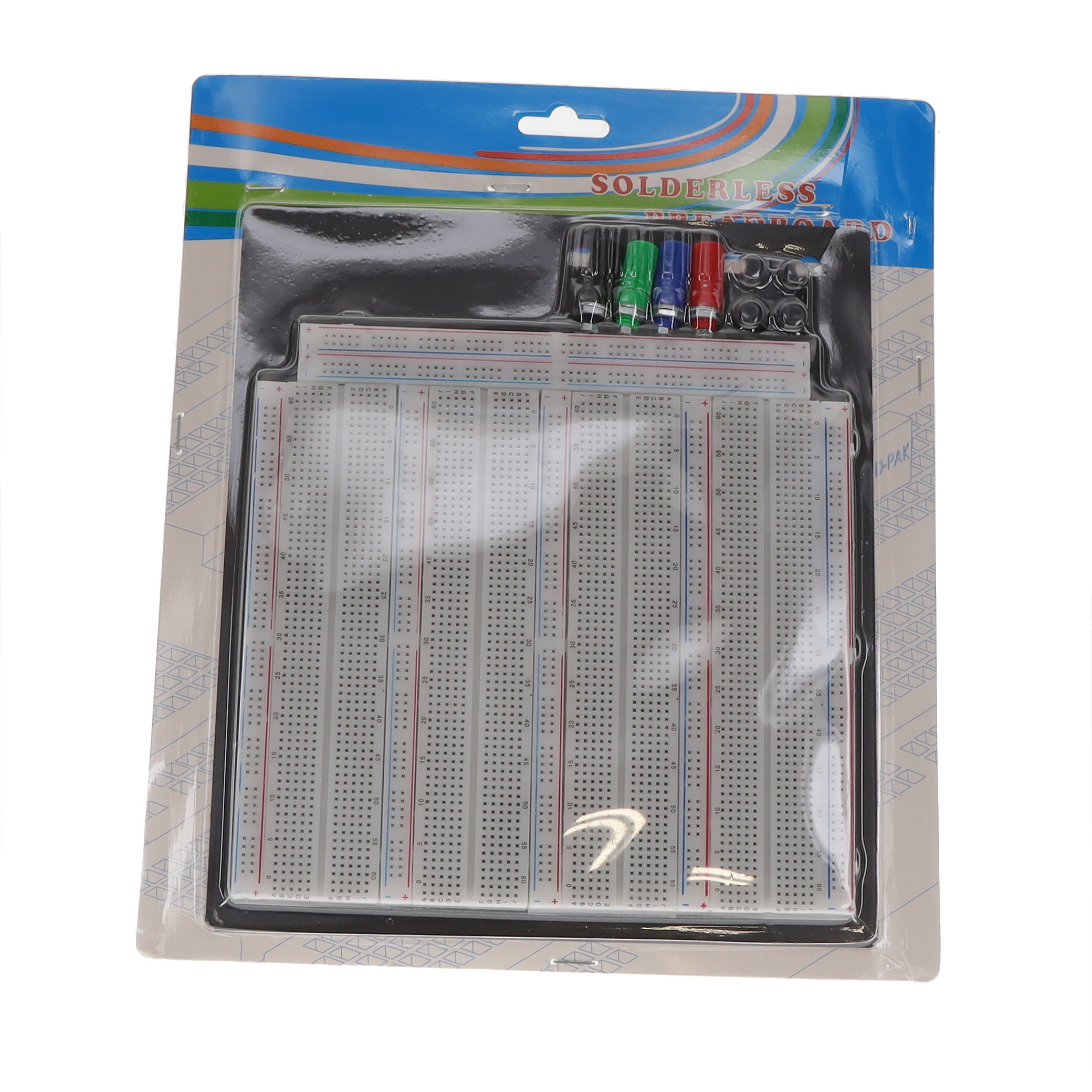

Solderless Breadboard Assembly (On Frame) 9.25" L x 8.00" W (235.0mm x 203.2mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-12614 |
|---|---|
| Number of 5-Tie Point Terminals | 504 |
| Number of Binding Posts | 4 |
| Number of Distribution Buses | 7 |
| Number of Terminal Strips | 4 |
| Number of Tie Points (Total) | 3220 |
| Size / Dimension Length | 9.25 in |
| Size / Dimension Width | 8 in |
| Type | Assembly (On Frame) |
| Wire Gauge (AWG) (Max) | 29 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
