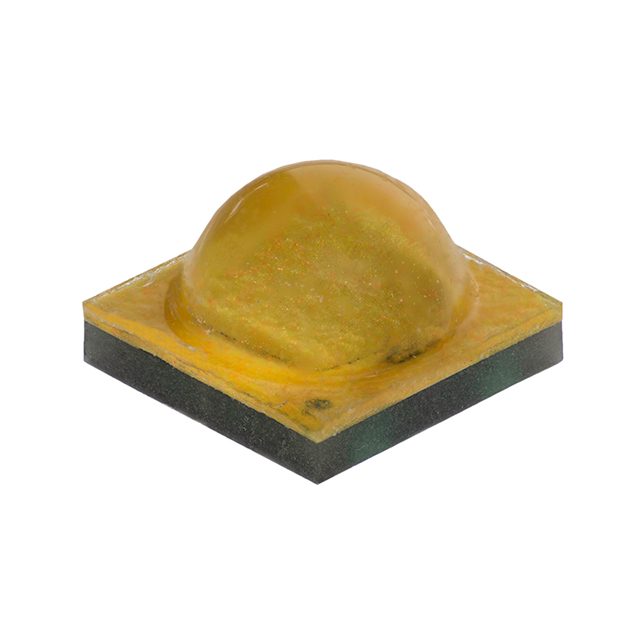

XPGDWT-01-0000-00LE0

Active

Cree LED

XLAMP XP-G GEN 3 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPGDWT-01-0000-00LE0

Active

Cree LED

XLAMP XP-G GEN 3 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPGDWT-01-0000-00LE0	XPGDWT Series

CCT (K)	6500 K	2200 - 7000 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	Neutral, White, Warm, Cool
CRI (Color Rendering Index)	70	70 - 95
Current - Max [Max]	2 A	2 A
Current - Test	350 mA	350 mA
Flux @ 25°C, Current - Test	-	142 - 205 lm
Flux @ 25°C, Current - Test	-	188 lm
Flux @ 25°C, Current - Test	-	180 lm
Flux @ 85°C, Current - Test	168 lm	104 - 192 lm
Flux @ 85°C, Current - Test	-	107 - 182 lm
Flux @ 85°C, Current - Test	-	100 - 172 lm
Flux @ 85°C, Current - Test	-	172lm ~ 180lm
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 - 2.42 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 - 0.095 "
Lumens/Watt @ Current - Test	176 lm/W	109 - 203 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	-	1414
Thermal Resistance of Package	-	0.7 °C/W
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	125 °	125 °
Voltage - Forward (Vf) (Typ)	2.73 V	2.7 - 2.83 V

XPGDWT Series

LED XLAMP NEUTRAL WHT 4500K 1414

...

Part	Color	Viewing Angle	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test	Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [diameter]	Supplier Device Package	Current - Max [Max]	CRI (Color Rendering Index)	CCT (K)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED XPGDWT-BS-0000-00LE4	Neutral, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	178 lm/W	168 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	70
Cree LED XPGDWT-BS-0000-00LE6	Warm, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	178 lm/W	168 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	70	3500 K
Cree LED XPGDWT-B1-0000-00K3E	Cool, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414		160 lm	350 mA	2.73 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W		2 A	70	5000 K
Cree LED XPGDWT-01-0000-00NF4	Neutral, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	195 lm/W	184 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	70	4750 K
Cree LED XPGDWT-BS-0000-00NE5	Neutral, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	195 lm/W	184 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	70	4000 K
Cree LED XPGDWT-U1-0000-00JDV	Cool, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	161 lm/W	152 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	90	6000 K	156 lm	148 lm
Cree LED XPGDWT-H1-0000-00JCB	Cool, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	159 lm/W	152 lm	350 mA	2.73 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W		2 A	80	6500 K	156 lm	148 lm
Cree LED XPGDWT-H1-0000-00G6E	Warm, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	141 lm/W		350 mA	2.73 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W		2 A	80	3500 K	139 lm	130 lm
Cree LED XPGDWT-BS-0000-00LE2	Cool, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	178 lm/W	168 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	70	5700 K
Cree LED XPGDWT-BS-0000-00K50	Cool, White	125 °	Surface Mount	2.39 mm	0.094 "	3535 Metric	1414	169 lm/W	160 lm	350 mA	2.7 V	3.45 mm	0.136 in	0.136 in	3.45 mm	3 °C/W	1414	2 A	70	6000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.80

Description

General part information

XPGDWT Series

LED Lighting XLamp® XP-G3 White, Cool 6500K 2.73V 350mA 125° 1414 (3535 Metric)
