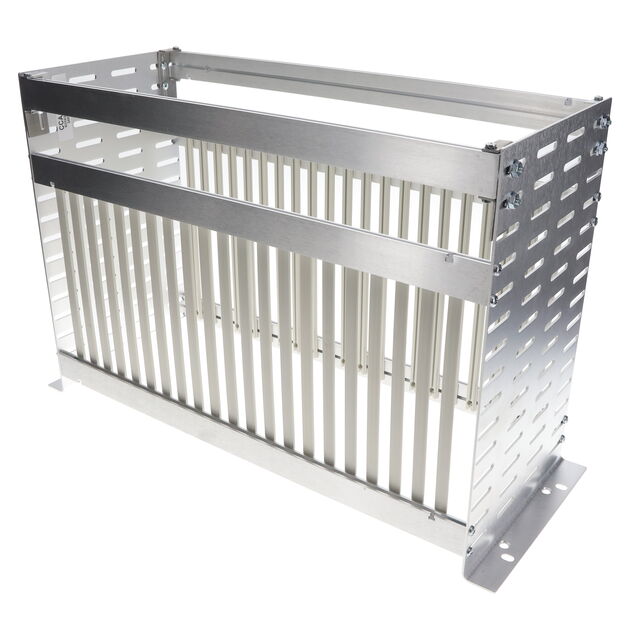

CCA15P/90
ActiveVector Electronics
CARD RACK ALUM 12X19 PLAS GUIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCA15P/90
ActiveVector Electronics
CARD RACK ALUM 12X19 PLAS GUIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCA15P/90 |
|---|---|
| Card Size Range [Max] [z] | 158.75 mm |
| Card Size Range [Max] [z] | 6.25 in |
| Card Size Range [Min] [z] | 4.25 in |
| Card Size Range [Min] [z] | 107.95 mm |
| Card Size Range [x] | 9.6 in |
| Card Size Range [x] | 243.84 mm |
| Guide Method | Card Guide |
| Height [z] | 7 " |
| Height [z] | 177.8 mm |
| Material | Aluminum |
| Size / Dimension [x] | 12 in |
| Size / Dimension [x] | 304.8 mm |
| Size / Dimension [y] | 482.6 mm |
| Size / Dimension [y] | 19 in |
| Type | Assembled Subracks with Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 228.36 | |
| 5 | $ 224.28 | |||
| 10 | $ 220.21 | |||
| 25 | $ 216.94 | |||
Description
General part information
CCA15P/90
Aluminum Assembled Subracks with Card Guides 4U = 7.000" (177.80mm)
