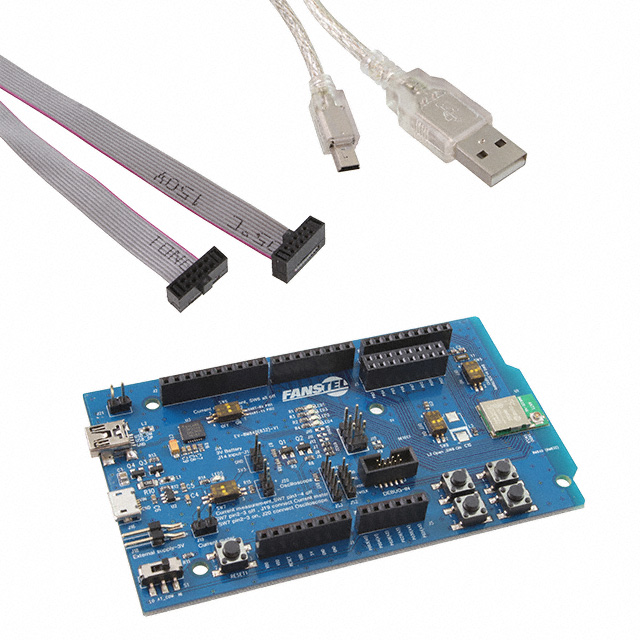

EV-BM832E

Active

Fanstel Corp.

EVALUATION BOARD FOR BM832E

Search across all available documentation for this part.

Active

Fanstel Corp.

EVALUATION BOARD FOR BM832E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 51.52

General part information

- BM832E Transceiver; Bluetooth® 5.x 2.4GHz Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EV-BM832E	BM832 Series

Antenna Type	-	PCB Trace, Antenna Not Included, U.FL
Data Rate	-	1 Mbps
For Use With/Related Products	BM832E	BM832, BM832E, BM832A
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	24 - 192 kB
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	47-SMD Module
Power - Output	-	4 dBm
Protocol	-	Bluetooth v5.0
RF Family/Standard	-	Bluetooth
Serial Interfaces	-	UART, GPIO, SPI, I2S, ADC, I2C, PWM
Supplied Contents	Board(s)	Board(s)
Type	Bluetooth® 5.x, Transceiver	Transceiver, Bluetooth® 5.x (BLE), Bluetooth® 5.x
Utilized IC / Part	-	nRF52832
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.7 V

RF TXRX MOD BT PCB TH SMD

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Antenna Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Protocol	Package / Case	RF Family/Standard	Serial Interfaces	Memory Size	Mounting Type	Frequency	Supplied Contents	Type	For Use With/Related Products
Fanstel Corp. BM832A	3.6 V	1.7 V	4 dBm	PCB Trace	1 Mbps	85 °C	-40 °C	nRF52832	Bluetooth v5.0	47-SMD Module	Bluetooth	ADC, GPIO, I2C, I2S, PWM, SPI, UART	24 kB, 192 kB	Surface Mount	2.4 GHz
Fanstel Corp. EV-BM832															2.4 GHz	Board(s)	Bluetooth® 5.x (BLE), Transceiver	BM832
Fanstel Corp. EV-BM832E															2.4 GHz	Board(s)	Bluetooth® 5.x, Transceiver	BM832E
Fanstel Corp. EV-BM832A															2.4 GHz	Board(s)	Bluetooth® 5.x (BLE), Transceiver	BM832A
Fanstel Corp. BM832E	3.6 V	1.7 V	4 dBm	Antenna Not Included, U.FL	1 Mbps	85 °C	-40 °C	nRF52832	Bluetooth v5.0	47-SMD Module	Bluetooth	ADC, GPIO, I2C, I2S, PWM, SPI, UART		Surface Mount	2.4 GHz
