832-AG11D-ESL-LF
ObsoleteTE Connectivity AMP Connectors

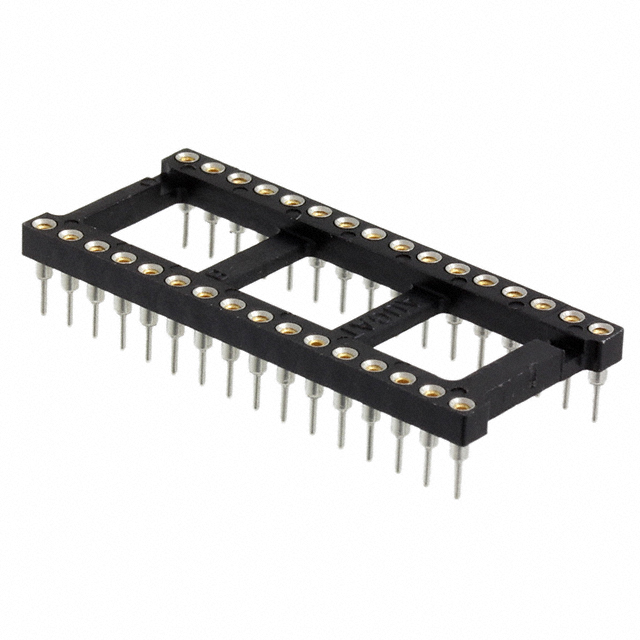

CONN IC DIP SOCKET 32POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

832-AG11D-ESL-LF
ObsoleteTE Connectivity AMP Connectors
CONN IC DIP SOCKET 32POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 832-AG11D-ESL-LF | 832 Series |
---|---|---|
Contact Finish - Mating | Gold | Gold |
Contact Finish - Post | Tin-Lead | Tin-Lead |
Contact Finish Thickness - Mating | Flash | Flash |
Contact Finish Thickness - Mating | - | 0.127 µm |
Contact Finish Thickness - Mating | - | 5 µin |
Contact Material - Mating | Copper Alloy | Copper Alloy |
Contact Material - Post [custom] | Copper Alloy | Copper Alloy |
Contact Resistance | 10 mOhm | 10 mOhm |
Current Rating (Amps) | 3 A | 3 A |
Features | Open Frame | Open Frame |
Housing Material | Polyester | Polyester |
Material Flammability Rating | UL94 V-0 | UL94 V-0 |
Mounting Type | Through Hole | Through Hole |
Number of Positions or Pins (Grid) [custom] | 2 x 16 | 2 x 16 |
Number of Positions or Pins (Grid) [custom] | 32 | 32 |
Operating Temperature [Max] | 105 ░C | 105 ░C |
Operating Temperature [Min] | -55 °C | -55 °C |
Pitch - Mating | 0.1 in | 0.1 in |
Pitch - Mating | 2.54 mm | 2.54 mm |
Pitch - Post | 2.54 mm | 2.54 mm |
Pitch - Post | 0.1 in | 0.1 in |
Termination | Solder | Solder |
Termination Post Length | 3.18 mm | 3.18 mm |
Termination Post Length | 0.125 in | 0.125 in |
Type | DIP | DIP |
Type | 0.6 in | 0.6 in |
Type | 15.24 mm | 15.24 mm |
832 Series
CONN IC DIP SOCKET 32POS GOLD
Part | Contact Finish - Post | Contact Material - Post [custom] | Contact Finish Thickness - Mating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Mating | Termination Post Length | Termination Post Length | Contact Finish - Mating | Mounting Type | Pitch - Post | Pitch - Post | Pitch - Mating | Pitch - Mating | Termination | Type | Type | Type | Material Flammability Rating | Contact Resistance | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Housing Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 832-AG11D-ESL-LF | Tin-Lead | Copper Alloy | Flash | Open Frame | 105 ░C | -55 °C | Copper Alloy | 3.18 mm | 0.125 in | Gold | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Solder | DIP | 0.6 in | 15.24 mm | UL94 V-0 | 10 mOhm | 2 x 16 | 32 | Polyester | 3 A | ||
TE Connectivity AMP Connectors 832-AG11D-ESL | Tin-Lead | Copper Alloy | Open Frame | 105 ░C | -55 °C | Copper Alloy | 3.18 mm | 0.125 in | Gold | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Solder | DIP | 0.6 in | 15.24 mm | UL94 V-0 | 10 mOhm | 2 x 16 | 32 | Polyester | 3 A | 0.127 µm | 5 µin | |
TE Connectivity AMP Connectors 832-AG10D | Open Frame | 105 ░C | -55 °C | Copper Alloy | 3.18 mm | 0.125 in | Gold | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Solder | DIP | 0.6 in | 15.24 mm | UL94 V-0 | 10 mOhm | 2 x 16 | 32 | Polyester | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Description
General part information
832 Series
32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
