Y0056200R000K0L
ActiveVPG Foil Resistors
TRIMMER 200OHM 0.75W PC PIN SIDE
Y0056200R000K0L
ActiveVPG Foil Resistors
TRIMMER 200OHM 0.75W PC PIN SIDE
Description
General part information
Y0056200R000K0L

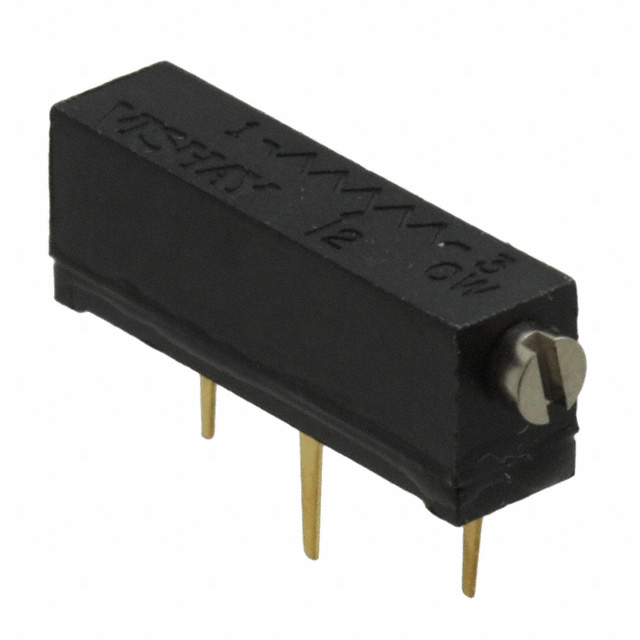

200 Ohms 0.75W, 3/4W PC Pins Through Hole Trimmer Potentiometer Metal Foil 26.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | Y0056200R000K0L |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 26 turns |
| Power (Watts) | 750 mW |
| Power (Watts) Options | 3/4W |
| Resistance | 200 Ohm |
| Resistive Material | Metal Foil |
| Size / Dimension Length | 0.27 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.19 in |
| Temperature Coefficient | 15 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
