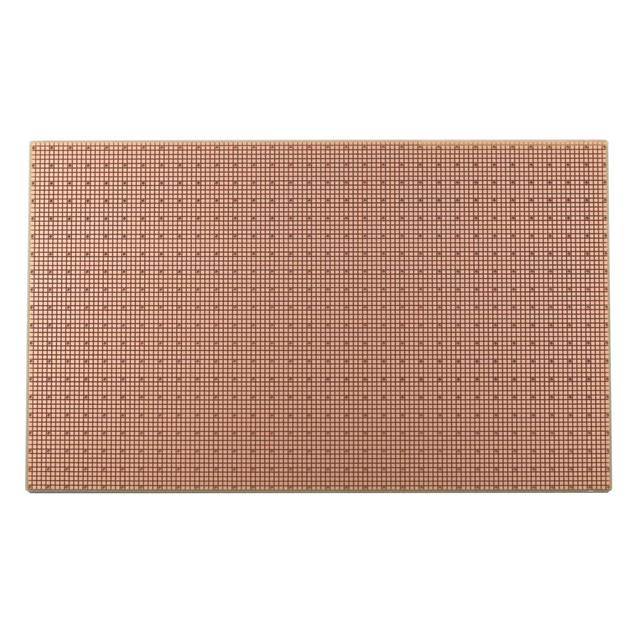

SP3T-50X50-G
ActiveBusBoard Prototype Systems
BREADBOARD GENERAL PURPOSE NPTH
SP3T-50X50-G
ActiveBusBoard Prototype Systems
BREADBOARD GENERAL PURPOSE NPTH
Description
General part information
SP3T-50X50-G
Breadboard, General Purpose Non-Plated Through Hole (NPTH) Pad Per Hole (Square)
Technical Specifications
Parameters and characteristics for this part
| Specification | SP3T-50X50-G |
|---|---|
| Board Thickness | 0.031 in |
| Circuit Pattern | Pad Per Hole (Square) |
| Hole Diameter | 0.031 in |
| Material | FR4 Epoxy Glass |
| Pitch | 0.05 in |
| Plating | Non-Plated Through Hole (NPTH) |
| Proto Board Type | Surface Mount, Breadboard, General Purpose |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 3.94 in |
