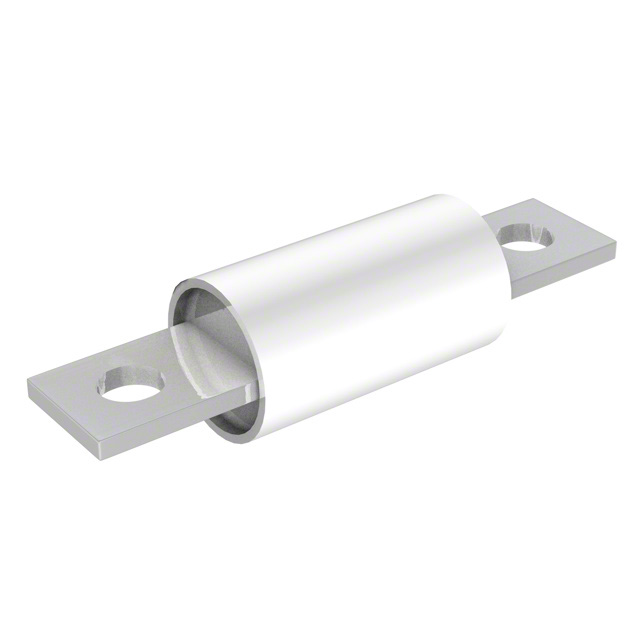

FWH-35A
ActiveEaton - Electronics Division
BUSS HIGH SPEED FUSE ROHS COMPLIANT: NO
FWH-35A
ActiveEaton - Electronics Division
BUSS HIGH SPEED FUSE ROHS COMPLIANT: NO
Description
General part information
FWH-35A
35A 500 VAC 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWH-35A |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 35 A |
| Fuse Type | Cartridge |
| Melting I²t | 34 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
