155216-5203-RB - 155216-5203-RB

155216-5203-RB

Active
3M

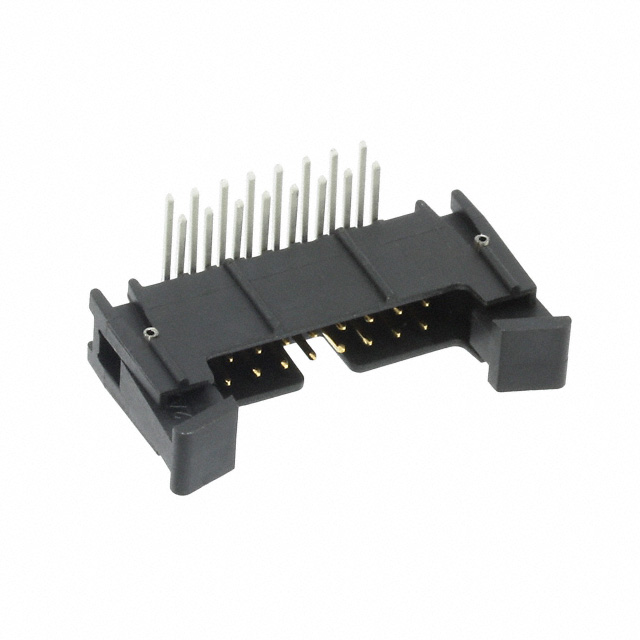

CONN HEADER R/A 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect CatalogDatasheet+1
155216-5203-RB - 155216-5203-RB

155216-5203-RB

Active
3M

CONN HEADER R/A 16POS 2MM

Deep-Dive with AI

DocumentsInterconnect CatalogDatasheet+1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification155216-5203-RB155216 Series
Connector TypeHeaderHeader
Contact Finish - MatingGoldGold
Contact Finish - PostTinTin
Contact Finish Thickness - Mating30 Áin30 Áin
Contact Finish Thickness - Mating0.76 Ám0.76 Ám
Contact Finish Thickness - Post200 µin200 µin
Contact Finish Thickness - Post5.08 µm5.08 µm
Contact Length - Mating0.15 in0.15 in
Contact Length - Mating3.81 mm3.81 mm
Contact Length - Post3.94 mm2.84 - 3.94 mm
Contact Length - Post0.155 "0.112 - 0.155 in
Contact MaterialCopper AlloyCopper Alloy
Contact ShapeSquareSquare
Contact TypeMale PinMale Pin
Current Rating (Amps)1.25 A1.25 A
Fastening TypeLatch Lock/Eject HooksLatch Lock/Eject Hooks
FeaturesKeying SlotPick and Place, Keying Slot
Insulation ColorBlackBlack
Insulation Height6.28 mm6.28 - 10.8 mm
Insulation Height0.247 in0.247 - 0.425 in
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough Hole, Right AngleSurface Mount, Through Hole, Right Angle, Through Hole
Number of Positions1616
Number of Positions LoadedAllAll
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-55 °C-55 °C
Pitch - Mating [x]0.079 in0.079 in
Pitch - Mating [x]2 mm2 mm
Row Spacing - Mating0.079 in0.079 in
Row Spacing - Mating2 mm2 mm
ShroudingShrouded - 4 WallShrouded - 4 Wall
StyleBoard to Cable/WireBoard to Cable/Wire
TerminationSolderSolder

155216 Series

CONN HEADER SMD 16POS 2MM

PartContact TypeTerminationFastening TypeContact ShapeMaterial Flammability RatingMounting TypeShroudingContact Finish Thickness - PostContact Finish Thickness - PostInsulation ColorContact Finish - PostPitch - Mating [x]Pitch - Mating [x]Contact Length - MatingContact Length - MatingContact MaterialContact Finish Thickness - MatingContact Finish Thickness - MatingFeaturesRow Spacing - MatingRow Spacing - MatingOperating Temperature [Max]Operating Temperature [Min]Current Rating (Amps)Contact Finish - MatingConnector TypeNumber of PositionsNumber of RowsStyleInsulation HeightInsulation HeightNumber of Positions LoadedContact Length - PostContact Length - Post
3M
155216-2200-RB-WE
Male Pin
Solder
Latch Lock/Eject Hooks
Square
UL94 V-0
Surface Mount
Shrouded - 4 Wall
200 µin
5.08 µm
Black
Tin
0.079 in
2 mm
0.15 in
3.81 mm
Copper Alloy
30 Áin
0.76 Ám
Keying Slot, Pick and Place
0.079 in
2 mm
105 ░C
-55 °C
1.25 A
Gold
Header
16
2
Board to Cable/Wire
0.425 in
10.8 mm
All
3M
155216-5302-RB
Male Pin
Solder
Latch Lock/Eject Hooks
Square
UL94 V-0
Through Hole, Right Angle
Shrouded - 4 Wall
200 µin
5.08 µm
Black
Tin
0.079 in
2 mm
0.15 in
3.81 mm
Copper Alloy
30 Áin
0.76 Ám
Keying Slot
0.079 in
2 mm
105 ░C
-55 °C
1.25 A
Gold
Header
16
2
Board to Cable/Wire
0.247 in
6.28 mm
All
2.84 mm
0.112 in
3M
155216-6302-RB
Male Pin
Solder
Latch Lock/Eject Hooks
Square
UL94 V-0
Through Hole
Shrouded - 4 Wall
200 µin
5.08 µm
Black
Tin
0.079 in
2 mm
0.15 in
3.81 mm
Copper Alloy
30 Áin
0.76 Ám
Keying Slot
0.079 in
2 mm
105 ░C
-55 °C
1.25 A
Gold
Header
16
2
Board to Cable/Wire
0.425 in
10.8 mm
All
2.84 mm
0.112 in
3M
155216-2200-RB
Male Pin
Solder
Latch Lock/Eject Hooks
Square
UL94 V-0
Surface Mount
Shrouded - 4 Wall
200 µin
5.08 µm
Black
Tin
0.079 in
2 mm
0.15 in
3.81 mm
Copper Alloy
30 Áin
0.76 Ám
Keying Slot
0.079 in
2 mm
105 ░C
-55 °C
1.25 A
Gold
Header
16
2
Board to Cable/Wire
0.425 in
10.8 mm
All
3M
155216-5403-RB
Male Pin
Solder
Latch Lock/Eject Hooks
Square
UL94 V-0
Through Hole, Right Angle
Shrouded - 4 Wall
200 µin
5.08 µm
Black
Tin
0.079 in
2 mm
0.15 in
3.81 mm
Copper Alloy
30 Áin
0.76 Ám
Keying Slot
0.079 in
2 mm
105 ░C
-55 °C
1.25 A
Gold
Header
16
2
Board to Cable/Wire
0.247 in
6.28 mm
All
3.94 mm
0.155 "
3M
155216-5203-RB
Male Pin
Solder
Latch Lock/Eject Hooks
Square
UL94 V-0
Through Hole, Right Angle
Shrouded - 4 Wall
200 µin
5.08 µm
Black
Tin
0.079 in
2 mm
0.15 in
3.81 mm
Copper Alloy
30 Áin
0.76 Ám
Keying Slot
0.079 in
2 mm
105 ░C
-55 °C
1.25 A
Gold
Header
16
2
Board to Cable/Wire
0.247 in
6.28 mm
All
3.94 mm
0.155 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

155216 Series

Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
